Roof Drain: Small Sump, Clamp Ring & Cast Iron Dome

Warning Cross Reference for MIFAB R1100-JC is Josam 22080.
     For best match use: -IRMA.


Specification

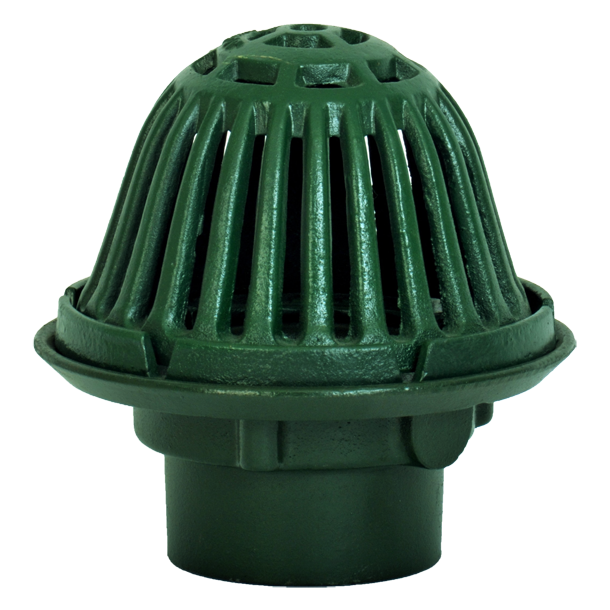

22080 Series coated cast iron roof Drain with beehive dome, WEJLOC non-puncturing clamp ring with integral gravel stop, small sump with roof flange and bottom outlet.

Application
Used on smaller roofs, gutters or valleys of any construction. Small diameter pan is particularly to gutters and valleys where space is limited. Wejloc compression clamp ring holds the membrane or flashing to the drain body. Small beehive dome provides ample drainage for small roof decks areas and intercepts debris.

Options
-AERAdjustable Extension using Threaded Rod/Hdwe -23Rough Bronze Dome
-AREAcid Resistant Epoxy Coated -26Aluminum Dome
-FGFlat Grate -3Deck Clamp Assembly & Drn Receiver
-IRMAPerforated Stainless Steel Extension -3CDrain Receiver and Drain Receiver Clips
-VPVandal-Proof -33S.S. Mesh Screen Covered Dome
-1Deck Clamp Assembly
-10Fixed Ext Collar, CI (spec. ht.) -TThreaded Outlet
-10-20Fixed Exn Collar, Galv. (spec. hgt.) -XInside Caulk Outlet
-172 Inch High Solid Clamping Collar -YHub Outlet w/Gasket, 2"-4"
-2Drain Receiver -ZNo-Hub Spigot Outlet
-20Galvanized Cast Iron Parts TSOThreaded Side Outlet
-21Galvanized Cast Iron Dome Only

Type # PIPE SIZE  LBS
22082 2 13
22083 3 13
22084 4 13
