Floor Drain: 9" Dia. CI Top w/Integral Trap, Flush Floor C.O. & Ball BWV

Warning Cross Reference for ZURN Z742 is Josam 38250A.

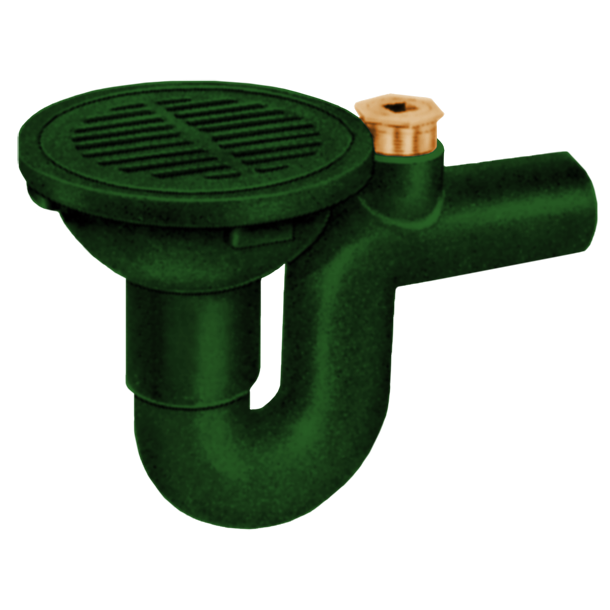

38250A Series coated cast iron combination Floor Drain and integral deep seal trap, side outlet spigot connection, round top, medium-duty loose-set grate, flush-with-floor cleanout and ball type backwater valve.

-VPSecured Grate, Vandal-Proof Screws -61Less Backwater Valve
-1Satin Finish Nikaloy Top -92Galvanized Cast Iron Parts
-15Chained Grate
-2Satin Finish Bronze Top -ZNo-Hub Spigot Outlet

Type # PIPE SIZE  B  C  D  E  F
38252A 2 9 15 8 4-1/2 11-7/8
38253A 3 10 18 9 3-7/8 12-3/4
38254A 4 12-1/4 21 11 5-3/8 15-5/8
