Roof Drain: Composition Deck Flange and Super-Flo Grate

Specification

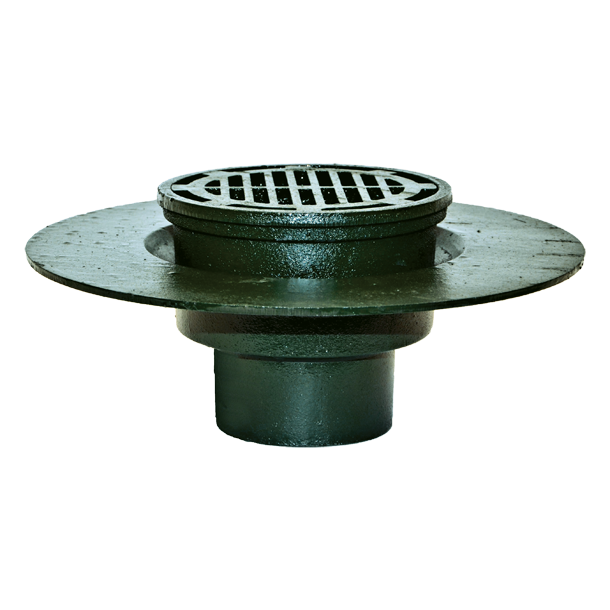

24040 Series coated cast iron SUPER-FLO Roof Drain, round medium-duty anti-tilting grate with perimeter drainage slots, extension, non-puncturing membrane clamp ring and medium sump with 4" wide deck flange and bottom outlet inside caulk connection.

Application
Used on promanade roof decks or anywhere that an elastomeric or liquid applied waterproofing is to be applied underneath a 2" pour of concrete or asphalt. Wide deck flange provides proper area for bonding of waterproofing material and distributes the drains weight over a broad area for positive support. Mid-sized round medium-duty Super-Flo grate assures rapid drainage and stops debris from entering the drain and pipe system. The 2" extension supports the grate at the proper finished deck level.

Options
-VPVandal-Proof -36Ductile Iron Grate (C.I. Top Only)
-1Deck Clamp Assembly -38Less Grate
-20Galvanized Cast Iron Parts -50Satin Finish Nikaloy Top
-29Sediment Bucket, Cast Iron -51Satin Finish Bronze Top
-29-20Sediment Bucket, Galvanized
-31Chain Anchored Grate -XInside Caulk Outlet

Type # PIPE SIZE  LBS
24042 2 30
24043 3 30
24044 4 30
