Roof Drain: Special-Duty, Composition Deck

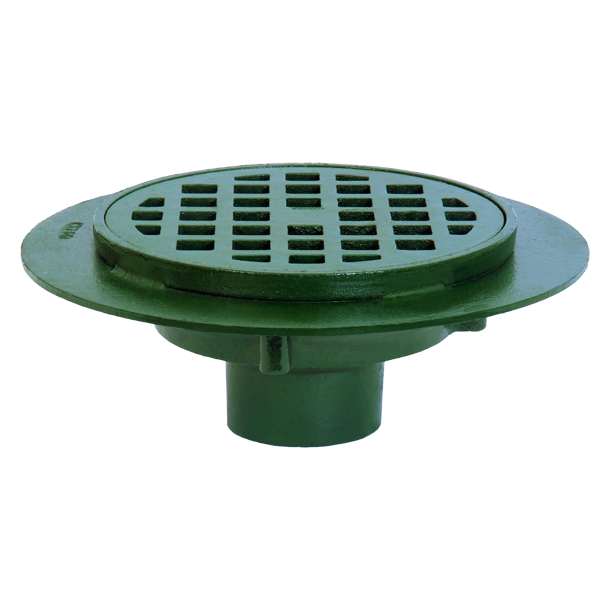

24060 Series coated cast iron Roof Drain, round special-duty grate and large sump with 4" wide deck flange and bottom outlet, inside caulk connection.
Used in parking garages or docks for heavy traffic where an elastomeric or liquid applied waterproofing is to be applied underneath a 1" pour of concrete or asphalt. Wide deck flange provides proper area for bonding of waterproofing material and distributes the drain's weight over a broad area for positive support. LArge diameter special-duty grate assures rapid drainage and stops debris from entering the drain and pipe system. The 2" extension supports the grate at the proper finished deck level.
||-31||Chain Anchored Grate
|-1||Deck Clamp Assembly
||-50||Satin Finish Nikaloy Top
|-20||Galvanized Cast Iron Parts
||-51||Satin Finish Bronze Top
|-29||Sediment Bucket, Cast Iron
|-29-20||Sediment Bucket, Galvanized
||-X||Inside Caulk Outlet
