Parapet Drain: Cast Iron Angle Grate, Flashing Clamp & Side Outlet

Specification

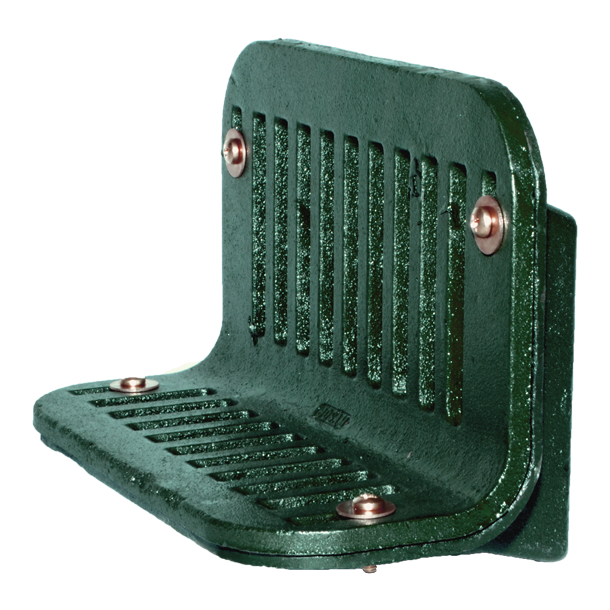

24720 Series coated cast iron Roof Drain, parapet type, secured angle grate integral with flashing clamp, shallow sump with flashing flange and side outlet threaded connection.

Application
Used at the junction of the roof and the parapet where perimeter or emergency roof drainage through a threaded side outlet is required. Angle grate provides ample drainage and is slotted to prevent entrance of debris. Flashing and membrane are positively secured to the drain body with a compression clamp. Option available for 45 degree angled threaded outlet.

Options
-VPVandal-Proof -51Satin Finish Bronze Top
-20Galvanized Cast Iron Parts -61Downspout Elbow, Cast Iron
-23Rough Bronze Dome -61-20Downspout Elbow, Galvanized
-24Rough Nikaloy Top
-45Body with 45 Degree Threaded Outlet -TThreaded Outlet
-50Satin Finish Nikaloy Top

Type # PIPE SIZE GRATE FREE  BxB1  CxC1  D  E
24722 2 25.9 4-1/2x11 6-1/2x11 1-1/2 6-3/8
24723 3 25.9 4-1/2x11 6-1/2x11 2-1/8 6-3/8
24724 4 29.5 4-1/2x11 6-1/2x11 2-5/8 6-3/8
24725 5 41.3 5-1/2x13 7-1/2x13 3-1/4 8-1/8
24726 6 41.3 5-1/2x13 7-1/2x13 3-3/4 8-1/8
