Downspout Cover: Stainless Steel with hinged cover

Specification

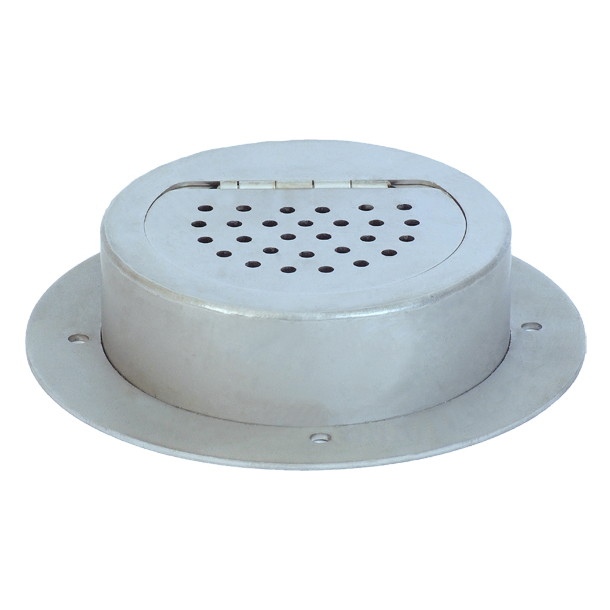

25020 Special Purpose Stainless Steel (Type 304) Downspout Cover with securing flange perforated hinged cover. (Formerly 25010-Q100)

Application
Used at a parapet overflow or at the base of a wall where a concealed leader discharges rainwater to the ground. The aesthetic corrosion resistant cover design extends beyond the finished wall to divert water away from the building and eliminate wall stains. Wall flange covers rough opening and include mounting holes for securing cover to the wall. The hinged cover permits access to the drain line and allows unobstructed flow during heavy rainfall.

Options
-VPVandal-Proof -316Type 316L Stainless Steel

Type #  PIPE SIZE
25024 2,3,4"
25026 6"
25028 8"
25029 10"
25029-12 12"
25029-15 15"
