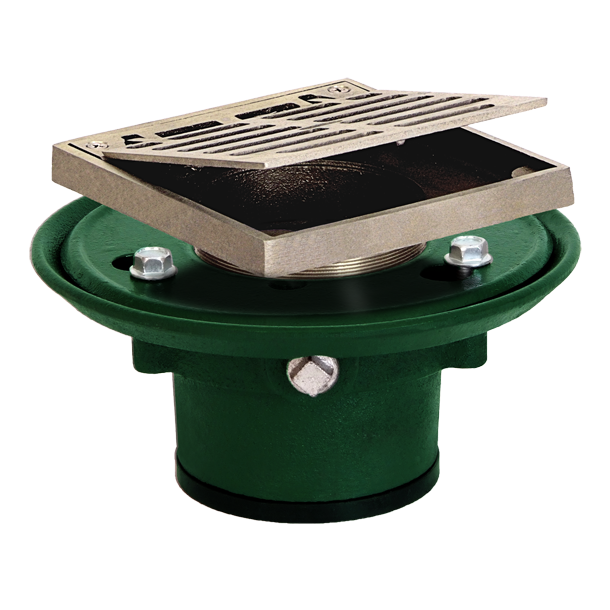

Floor Drain: C.I. Body w/Clamp Ring, Flange, Adjustable Nikaloy Strainer.

Specification
30000-T Series coated cast iron Floor Drain, two-piece body with double drainage flange, WEJLOC invertible non-puncturing flashing collar, weepholes, bottom outlet and adjustable satin Nikaloy Square strainer with hinged grate.

Options
-AREAcid-Resisting Epoxy -80Perforated Stainless Steel Basket
-JBackwater Valve -92Galvanized Cast Iron Parts
-SCSolid Cover
-TSITrap Seal Insert -PDPrison Drain
-VPSecured Grate, Vandal-Proof Screws -TThreaded Outlet
-2Satin Finish Bronze Top -XInside Caulk Outlet
-493/4 Inch Primer Tap -YHub Outlet w/Gasket, 2"-4"
-501/2 Inch Primer Tap -ZNo-Hub Spigot Outlet

Type # PIPE SIZE STRAINER TYPE TOP DIA
30002 2 5T 5"
30003 3 6T 6"
30004 4 9T 9"
*STRAINER& BODY
