Floor Drain: 8" Dia. C.I. Top w/Integral Trap & Flush Floor Cleanout

Specification

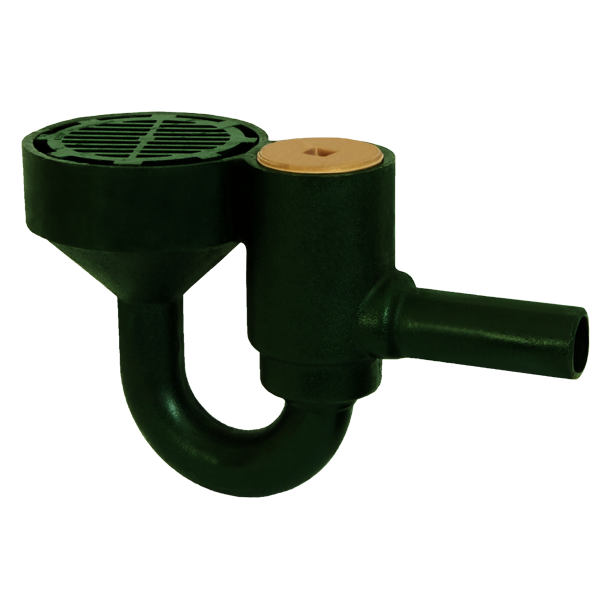

38040 Series coated cast iron combination Floor Drain and integral deep seal trap, spigot side outlet, round top, medium-duty loose-set SUPER-FLO grate and closure plug protected by a tractor cover.

Options
-TSITrap Seal Insert -60Backwater Valve
-VPSecured Grate, Vandal-Proof Screws -7Ductile Iron Grate
-1Satin Finish Nikaloy Top -81Slotted Cast Iron Bucket
-11Extra Heavy Grate, Cast Iron -81-92Slotted Cast Iron Bucket, Galv
-15Chained Grate -84S.S. Mesh Bucket Liner
-2Satin Finish Bronze Top -88Supplementary Strainer
-493/4 Inch Primer Tap -92Galvanized Cast Iron Parts
-501/2 Inch Primer Tap
-511-1/2 Inch Auxiliary Threaded Inlet -ZNo-Hub Spigot Outlet
-522 Inch Auxiliary Threaded Inlet

Type # PIPE SIZE  BxB1  C  E  F  G
38042 2 14-1/8 x 9 21-1/8 5-3/4 13-1/2 16-5/8
38043 3 16-1/4 x 9 23-7/8 6-3/4 17 19-3/8
38044 4 16-1/4 x 9 23-7/8 6-3/4 17 19-3/8
