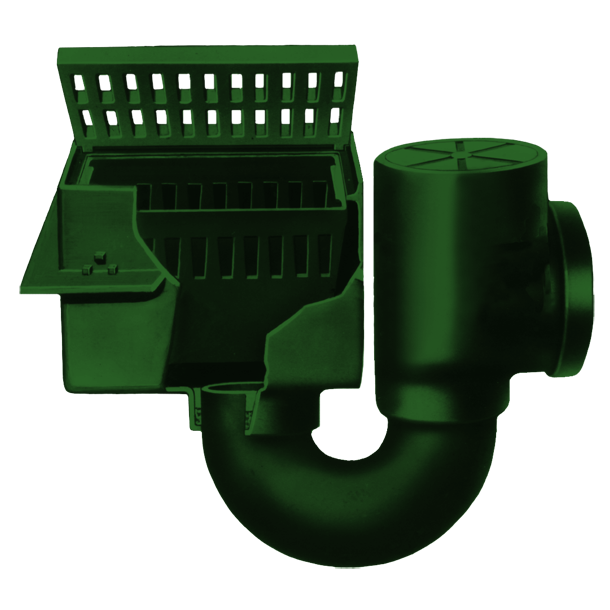

Floor Drain: Rectangular with Hinged Grate, Deep Seal Trap and Bucket

Specification
38620-40 Series coated cast iron combination Floor Drain and deep seal trap, side outlet threaded connection, 12-7/8" x 10-7/8" top, flush-with-floor cleanout, removable medium-deep sediment bucket, and heavy-duty hinged grate.

Options
-TSITrap Seal Insert -60Backwater Valve
-VPSecured Grate, Vandal-Proof Screws -7Ductile Iron Grate
-1Satin Finish Nikaloy Top -70Less Bucket
-2Satin Finish Bronze Top -84S.S. Mesh Bucket Liner
-33Galvanized Bucket Only -92Galvanized Cast Iron Parts
-493/4 Inch Primer Tap
-501/2 Inch Primer Tap -TThreaded Outlet

Type # PIPE SIZE  C X C1  E  F  G  M
38623-40 3 19-1/2 X 10-7/8 7-1/8 17 14-1/4 5
38624-40 4 20-1/2 X 10-7/8 6-5/8 18 15-3/8 5
