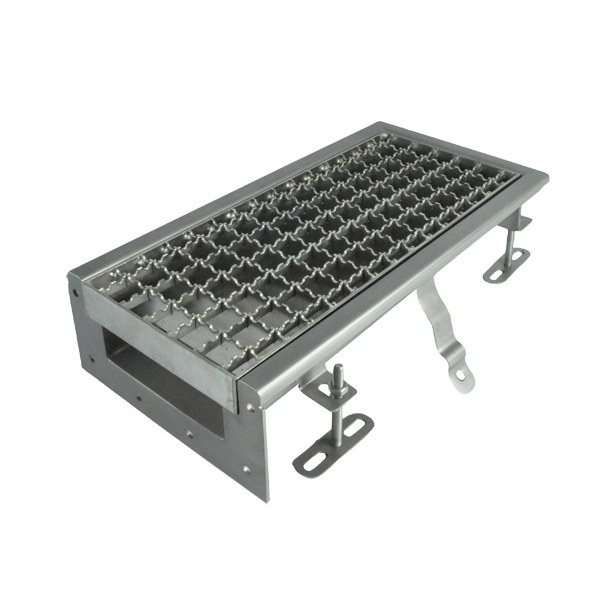

46300 SERIES STAINLESS STEEL TRENCH DRAIN 6" WIDE WITH SS GRATING.

Specification
Josam series 46300 fabricated stainless steel (type 304, 2mm THK), 6" wide, v-shaped bottom, available with or without slope (1% STD), with anchor tabs and leveling feet, bottom outlet and grate options. Run lengths longer than 13' provided with flanges and gaskets.

Options
-BWButt-Weld Outlet (avail 10,40,80) -TThreaded Outlet
-FBFilter Basket -VPSecured Grate
-FCAnchor Flange and Clamp -316Type 316L Material
-SBSediment Bucket TD.LENGTHTotal Run Length

Type # GRATE TYPE
46312 REINFORCED
46313 "
46314 "
46322 ANTI-SLIP MESH
46323 "
46324 "
46332 SOLID/PERIMETER
46333 "
46334 "
46342 LADDER
46343 "
46344 "
