Floor Sink: 6-1/4" X 12-3/8" A.R.E. Top with Drainage Flange

Specification

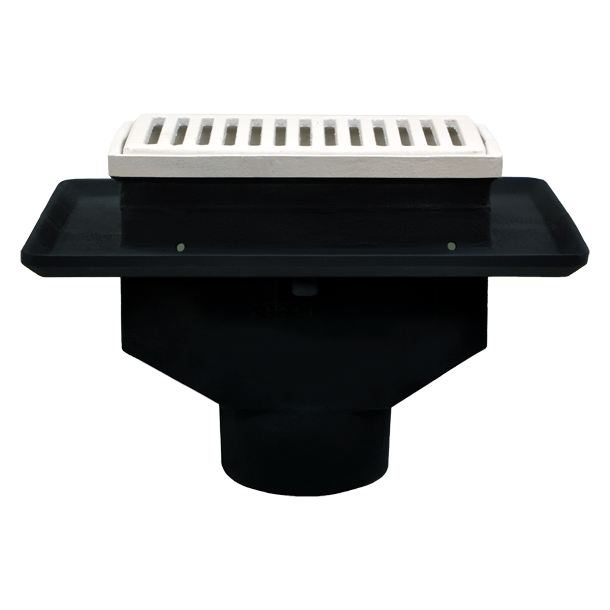

49720 Series rectangular cast iron 6-1/2" deep SUPER-FLO-SEPTOR Floor Sink with acid-resisting interior, double drainage flange with weepholes, bottom outlet, aluminum internal dome strainer, and cast iron non-traffic acid-resisting grate.

Options
-CClamp Device -43/4 Grate
-LFLess Flange -43Internal Dome Str (A.R. Finish CI)
-LGLess Grate -45Less Internal Dome Strainer (Alum)
-NBNickel Bronze Traffic Top -51Galvanized C.I. Inside and Outside
-TSITrap Seal Insert -52Painted Inside and Outside
-VPSecured Grate, Vandal-Proof Screws, NB -551/2 Inch Primer Tap
-16Grate with 4 Inch Round Funnel -7Full Grt w/2-1/2 In. Center Opening
-18Grt w/9 In. x 3-1/2 In. Oval Funnel -8Depressed Grate
-31/2 Grate
-30Stainless Steel Sediment Bucket -XInside Caulk Outlet

Type # PIPE SIZE  LBS
49723 3 48.8
49724 4 49.4
49726 6 50.2
