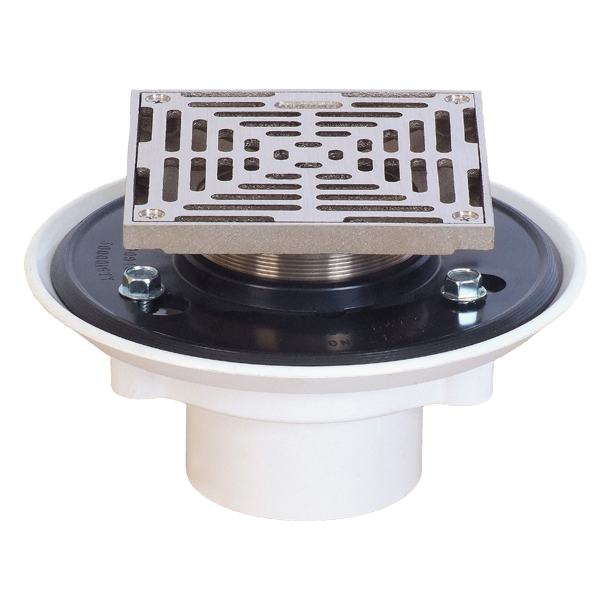

Lite Line: PVC 2-Piece Drain Body w/Adj SQ Nikaloy Str

Specification
PVC 2-piece floor drain with 1/2" primer tap with plug, solvent weld bottom outlet for sch 40 pvc pipe and adjustable square nikaloy strainer.

Options
-CP	Chrome Plated	-2	Satin Finish Bronze Top
-TSI	Trap Seal Insert	-49	3/4" Primer Tap
-VP	Secured Grate, Vandal-Proof Screws

Type #	PIPE SIZE
FD-302J-5S	2
FD-303J-5S	3
FD-304J-5S	4
FD-302J-6S	2
FD-303J-6S	3
FD-304J-6S	4
FD-302J-8S	2
FD-303J-8S	3
FD-304J-8S	4
