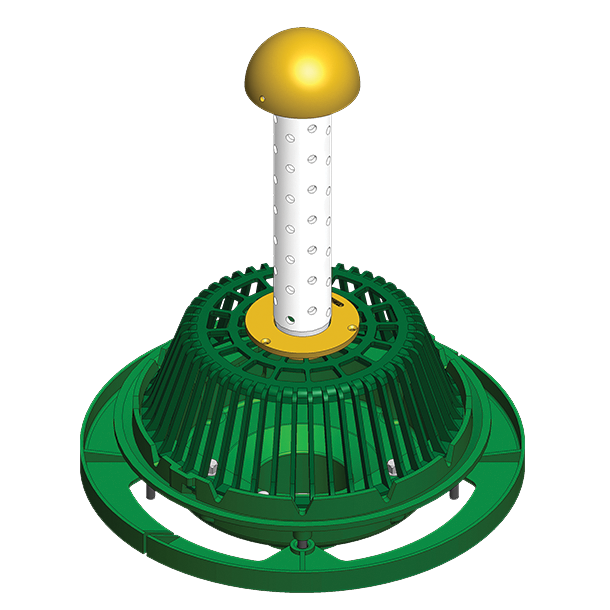

Roof Drain: Green Roof Drain, Large Sump, Large Dome, Perforated Standpipe

Specification
21500-Q261 Series coated cast iron roof drain, WEJLOC non-puncturing clamp with integral gravel stop, large sump with wide roof flange and bottom outlet, large dome with perforated standpipe, secured dome strainer and cast bronze dome.

Options
-AE	LEVELEZE Adjustable Extension	-3C	Drain Receiver and Drain Receiver Clips
-AER	Adjustable Extension using Threaded Rod/Hdwe	-4	Secondary Flashing Clamp (use with -AE only)
-PC	Perforated Cover	-6	Extra Wide Flange Drain Body, -X Only
-1	Deck Clamp Assembly
-1CP	Drain Receiver Clips	-T	Threaded Outlet
-10	Fixed Ext Collar, CI (spec. ht.)	-X	Inside Caulk Outlet
-10-20	Fixed Exn Collar, Galv. (spec. hgt.)	-Y	Hub Outlet w/Gasket, 2"-4"
-2	Drain Receiver	-Z	No-Hub Spigot Outlet
-20	Galvanized Cast Iron Parts	-66	No-Hub Side Outlet
-3	Deck Clamp Assembly & Drn Receiver

Type #	PIPE SIZE	LBS
21502-Q261	2	36
21503-Q261	3	37
21504-Q261	4	38
21505-Q261	5	39
21506-Q261	6	40
21508-Q261	8	42
21509-Q261	10	43
