No-Hub Outlet Roof Drain

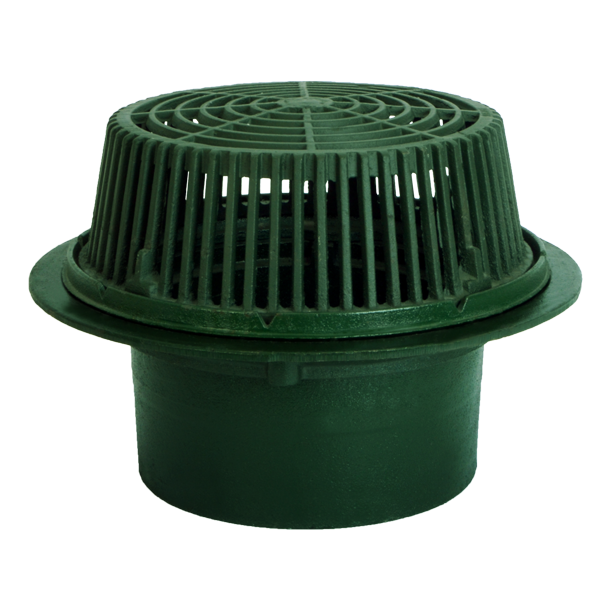

Series coated cast iron Roof Drain with large cast iron dome, non-puncturing clamp ring with integral gravel stop, large sump with wide roof flange and no-hub bottom outlet.
Used on roofs of any size, for any type of construction. Extra large slotted cast iron dome ensures maximum free area for quick drainage of rainwater and protects the drain sump and connected piping from debris. WEJLOC@ compression flashing clamp holds the membrane or flashing securely to the drain body.
|-AER||Adjustable Extension using Threaded Rod/Hdwe
||-17||2 Inch High Solid Clamping Collar
|-1||Deck Clamp Assembly
||-20||Galvanized Cast Iron Parts
|-10||Fixed Ext Collar, CI (spec. ht.)
||-3||Deck Clamp Assembly & Drn Receiver
|-10-20||Fixed Exn Collar, Galv. (spec. hgt.)
