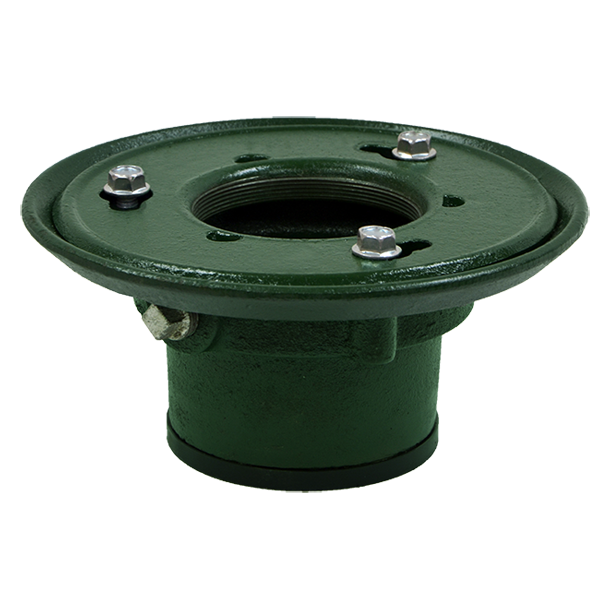

Floor Drain: Body Assembly w/Wejloc Clamp Ring & Double Drainage Flange

Specification
30000 Series coated cast iron Floor Drain, two-piece body with double drainage flange, bottom outlet, WEJLOC invertible non-puncturing flashing collar with weepholes threaded to receive a Josam adjustable strainer.

Application
For use with all adjustable strainers. Wide flange anchors drain body in concrete and works in conjunction with the clamp collar to redirect waste through the collar's weepholes if seepage occurs around the strainer. The WEJLOC clamp provides a non-puncturing positive bond of the waterproofing membrane to the drain body for applications where floors with standing water are to be sealed off from areas below. The collar is also invertible for extra vertical strainer adjustment to meet finished floor level

Options
.
-ARE	Acid-Resisting Epoxy	-PD	Prison Drain
-PFB	Pre-Fabricated Base	-ST	With Shallow P Trap
-TSI	Trap Seal Insert	-T	Threaded Outlet
-49	3/4 Inch Primer Tap	-X	Inside Caulk Outlet
-50	1/2 Inch Primer Tap	-Y	Hub Outlet w/Gasket, 2"-4"
-91	Rough Bronze Body	-Z	No-Hub Spigot Outlet
-92	Galvanized Cast Iron Parts	TSO	Threaded Side Outlet

Type #	PIPE SIZE	LBS
30002	2	11
30003	3	13
30004	4	13
30006	6
