Floor Drain: S.S. Mesh Covered C.I. Dome & Clamp Ring for Planter Areas

Specification

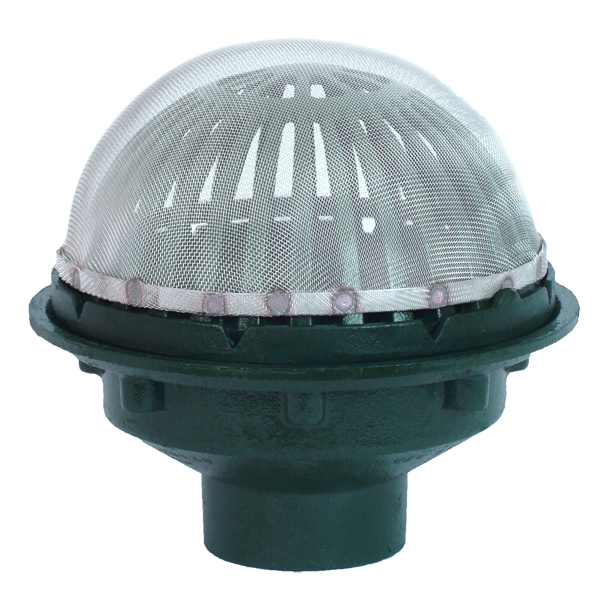

39600 Series coated cast iron Planting Area Drain with flashing flange anc clamp device, bottom outlet, stainless mesh screen covered dome, secured in place by bolts.

Options
-TSITrap Seal Insert -TThreaded Outlet
-89Deck Clamp Assembly -XInside Caulk Outlet
-92Galvanized Cast Iron Parts -ZNo-Hub Spigot Outlet
-66No-Hub Side Outlet

Type # PIPE SIZE  D  E  LBS
39602 2 4-3/4 6-1/4 30
39603 3 4-3/4 6-1/4 30
39604 4 4-1/2 6-1/4 30
39605 5 4-3/8 6 30
39606 6 4 5-3/4 30
