Rood Drain: Large Sump, Promenade Top with Perforated Stainless Steel Extension

Warning Cross Reference for J.R. SMITH 1409 is Josam 23500-IRMA.


Specification

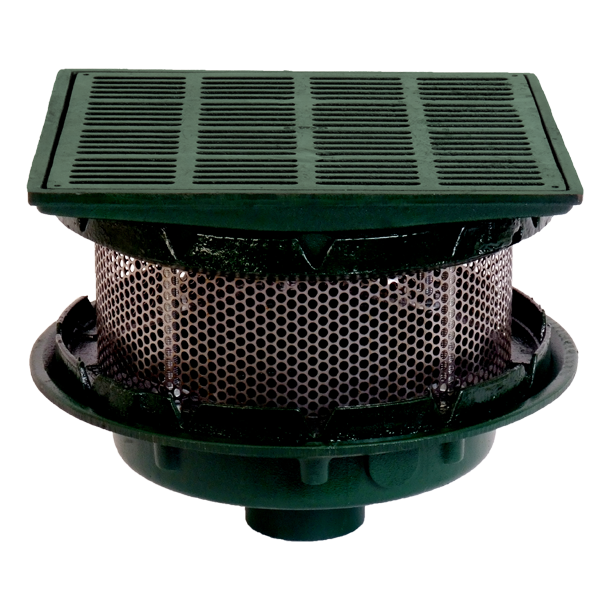

23500-IRMA Series coated cast iron Roof Drain, square pedestrian grate set in square secured frame, support collar ,perforated stainless steel extension filter, WEJLOC non-puncturing clamp ring and large sump with wide roof flange and bottom outlet.

Options
-AELEVELEZE Adjustable Extension -36Ductile Iron Grate (C.I. Top Only)
-CRClamping Drain Receiver with Hardware -37-50H.D. Duct Undergrt Lam Top,S.F. Nik
-PG110 Sq in free area grate (ductile iron only) -37-51H.D. Duct Undergrt Lam Top,S.F. Brz
-VPVandal-Proof -4Secondary Flashing Clamp (use with -AE only)
-1Deck Clamp Assembly -50Satin Finish Nikaloy Top
-1CPDrain Receiver Clips -51Satin Finish Bronze Top
-10Fixed Ext Collar, CI (spec. ht.) -6Extra Wide Flange Drain Body, -X Only
-10-20Fixed Exn Collar, Galv. (spec. hgt.)
-18Extra Deep Sump -TThreaded Outlet
-2Drain Receiver -XInside Caulk Outlet
-20Galvanized Cast Iron Parts -YHub Outlet w/Gasket, 2"-4"
-3Deck Clamp Assembly & Drn Receiver -ZNo-Hub Spigot Outlet
-3CDrain Receiver and Drain Receiver Clips -66No-Hub Side Outlet
