Water Closet Carriers


Refine Selection


  • Standard Chase Carriers
    • Horizontal
    • Vertical
  • Close Chase Carriers
    • Hub & Spigot
    • No-Hub
  • Institutional Carrier
  • Carrier Only -pipe by others

Return to All Products

yellow triangle w/exclamationWARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Learn more about this warning.
Home »  Products  »  Water Closet Carriers
HS CARRIER
HS CARRIER – Standard Hub and Spigot Carriers
STD CARRIER
STD CARRIER – Standard No-Hub Carriers
11001
11001 – Closet Carrier with Pipe Adapter

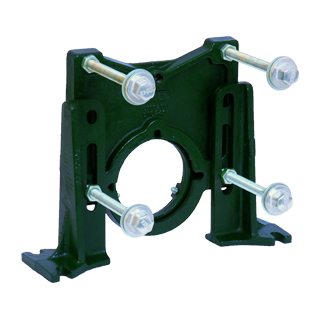

11007
11007 – Closet Carrier with 3 in. Copper Pipe Adapter
11008
11008 – Closet Carrier with 4 in. Copper Pipe Adapter

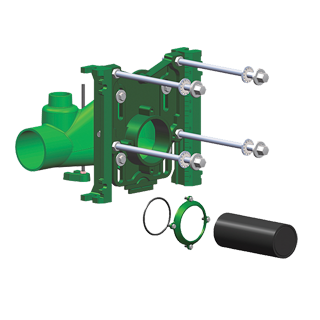

12000-CR
12000-CR – Water Closet Carrier: Standard CHASE SAVER II Trim Pack with Compression Ring

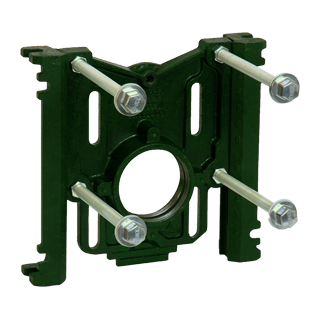

12000-OR
12000-OR – Water Closet Carrier: -OR Chase Saver II Trim Package

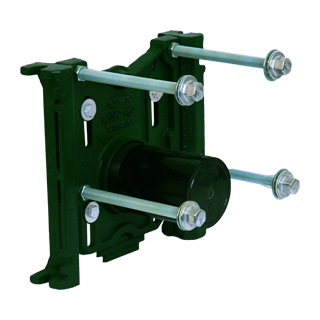

12000-PF
12000-PF – Water Closet Carrier: Standard CHASE SAVER II Trim Pack with Pylon Feet
12673
12673 – Water Closet Carrier: Left-Hand Horizontal Single Adj. w/2" Vent

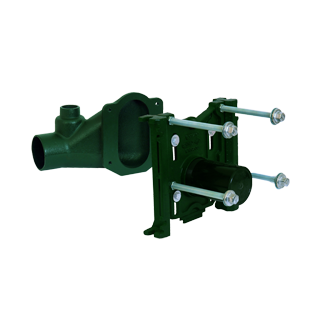

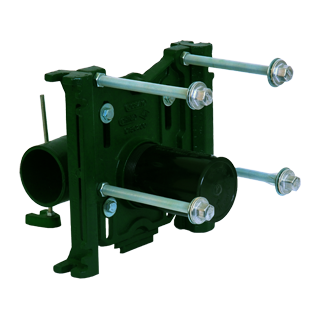

12674
12674 – Water Closet Carrier: Left-Hand Horizontal Single Adj. w/2" Vent
12683
12683 – Carrier: Right-Hand Horizontal Single Adj. w/2" Vent
12684
12684 – Carrier: Right-Hand Horizontal Single Adj. w/2" Vent
12693
12693 – Carrier: Horizontal Back-to-Back Adj. w/2" Vent

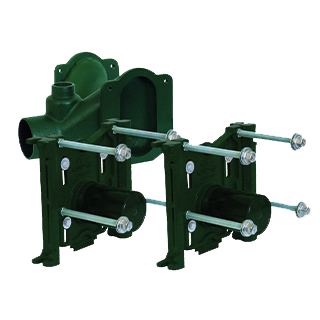

12694
12694 – Carrier: Horizontal Back-to-Back Adj. w/2" Vent

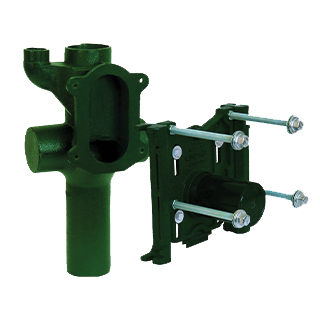

12704
12704 – Carrier: Vertical Single Adjustable, Left-Hand Vent

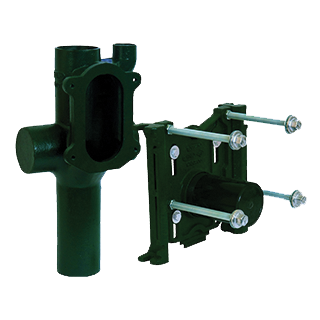

12714
12714 – Carrier: on Stack Vertical Single Adjustable No-Hub

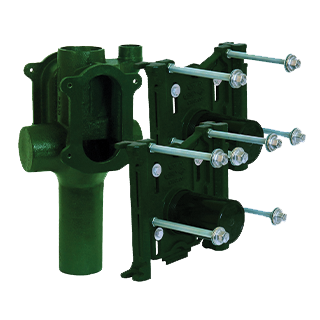

12724
12724 – Carrier: on Stack Vertical Double Adjustable No-Hub

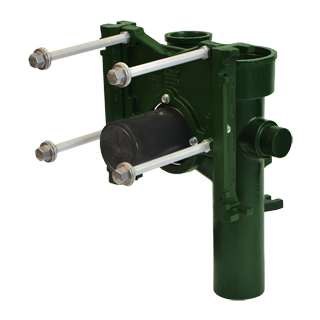

14004
14004 – Carrier: Vertical Single Close w/Lh 4 in. Offset, Hub & Spigot

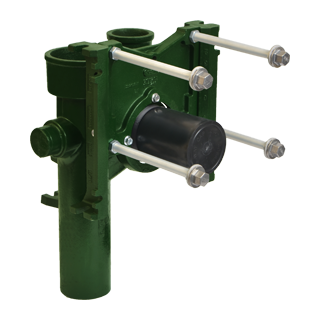

14024
14024 – Carrier: Vertical Single Close w/Rh 4 in. Offset, Hub & Spigot

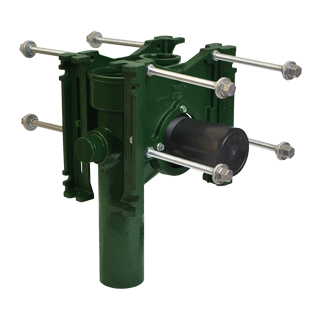

14044
14044 – Carrier: Vertical Double Close w/4 in. Offset, Hub & Spigot

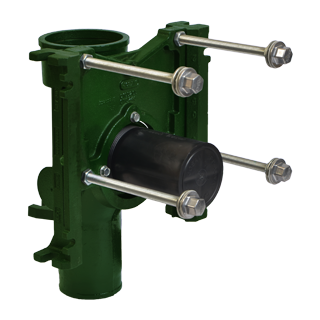

14064
14064 – Carrier: Vertical Single Close, On-Stack, Hub & Spigot 4 in. Vent

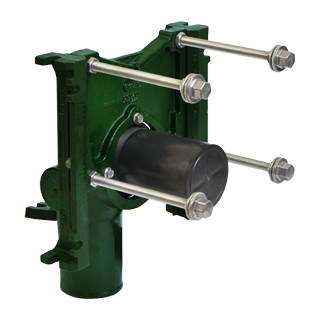

14104
14104 – Carrier: Vertical Single Close, On-Stack, Hub & Spigot 2 in. Vent

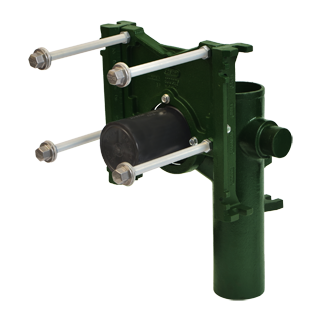

14404
14404 – Carrier: Vertical Single Close w/4 in. Lh Offset, No-Hub, w/2 in. Aux. Inlet

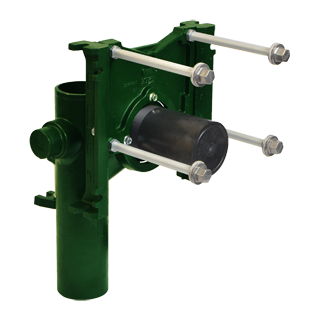

14424
14424 – Carrier: Vertical Single Close w/4 in. Rh Offset, No-Hub, w/2 in. Aux. Inlet

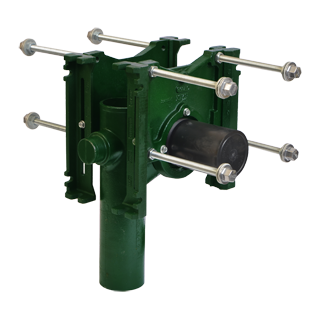

14444
14444 – Carrier: Vertical Double Close w/4 in. Offset, No-Hub, w/2 in. Aux. Inlet

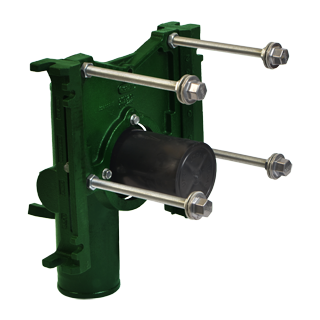

14464
14464 – Carrier: Vertical Single On-Stack, Close, No-Hub 4 in Vent

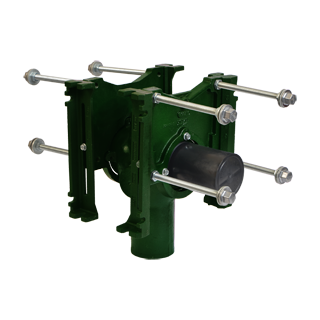

14484
14484 – Carrier: Vertical Double On-Stack, Close, No-Hub 4 in. Vent

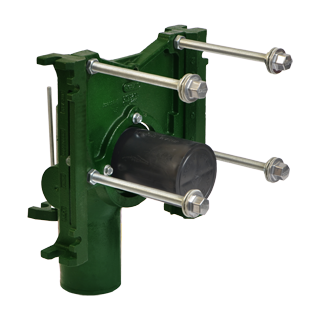

14504
14504 – Carrier: Vertical Single On-Stack, Close, No-Hub 2 in Vent

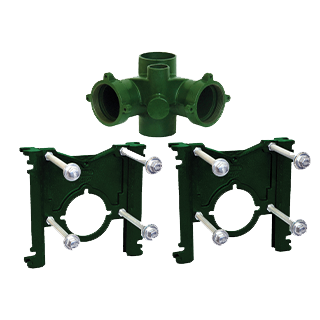

15964
15964 – Carrier: 90 Degree Double Waste Fitting & Carrier, No-Hub

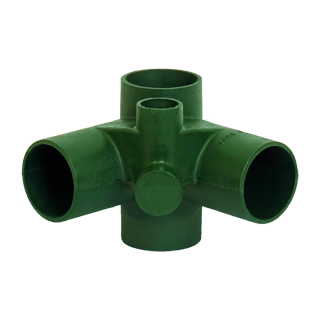

15984
15984 – Carrier: 90 Degree Double Waste Fitting Only, No-Hub

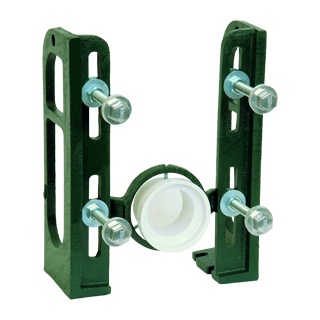

16123
16123 – Carrier: Vertical Single On-Stack w/Adapter for PVC

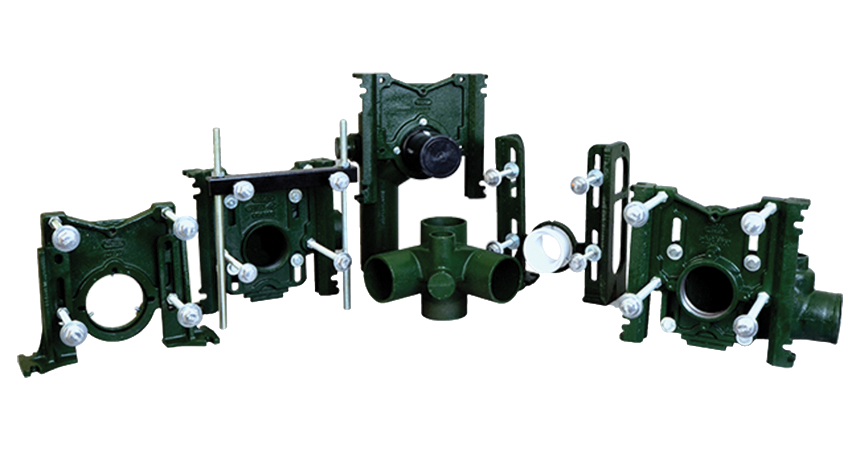

Josam's water closet carriers are the perfect solution for commercial installations for either siphon jet or blowout applications. Our water closet carriers are manufactured in a variety of offerings to sustain various weight requirements and are economically feasible for pre-fabrication environments.

Josam offers three different connection types that provide a water-tight pathway from the toilet bowl to the carrier. Engineers and installers have the option to choose either a Tapered thread extension, O-Ring extension, or Compression ring extension.

Some of our Carrier features include
  • Same chase depth requirements for up to 750 lb capacity
  • Added Stability with "dual-bolt" or "double-bolt" anchor foot for load capacities above 500 lbs
  • Adjustable Connection to meet waste pipeline level
  • Adjustable Pylon Feet for variable bowl height setting
  • ABS extension with integral test cap standard
  • Chrome plated trim
  • Coated accessories
  • and Neoprene fixture gaskets
All labor-saving water closet carrier trim packages come in a biodegradable shrink wrap material with all parts secured in one package and when specified, with the carrier adjusted to its required height. They can also be tagged with labels indicating where they are to be used on the job site, allowing contractors to easily determine where the products go instead of trying to figure it out. When specified, the carriers can be pre-assembled prior to delivery.

Josam's Carriers feature pylon feet specially designed with only one bolt as opposed to two on each side for setting the faceplate height, which helps save on installation time. Standard carriers are rated up to 500-pound capacity and the -SDH option allows you to achieve 750-pound load. Josam's design for bariatric applications proves that heavy and costly castings are not necessary. The -XSD Extra Special Duty Carrier support system allows the conversion to a 1,000-pound rated support.

Josam's Carriers are available in a prefab package. Generally, carriers up to 750 lb load capacity maximize labor saving benefits and are the most beneficial for prefab applications. They provide job site versatility and a smooth and easy installation process, while saving time and money.
