Trench Drain System – PRO-PLUS

PRO-PLUS Trench Drain System

PRO-PLUS Trench Drain System

Josam’s PRO-PLUS® trench drain system is manufactured using glass-fiber reinforced polyester (GRP)  pressed from sheet molding compound (SMC), which is a composite of polyester resin, mineral fillers and glass-fiber mats.

The material has revolutionized many industrial products and has become indispensable in today’s world.  Its applications are wide and varied: from rotor blades for helicopters, bodywork for automobiles, to yachts and aircraft. In fact, glass-fiber reinforced polyester made from SMC is used wherever extreme conditions prevail and special degrees of durability and rigidity are called for, precisely as in JOSAM’s PRO-PLUS® drainage solutions.

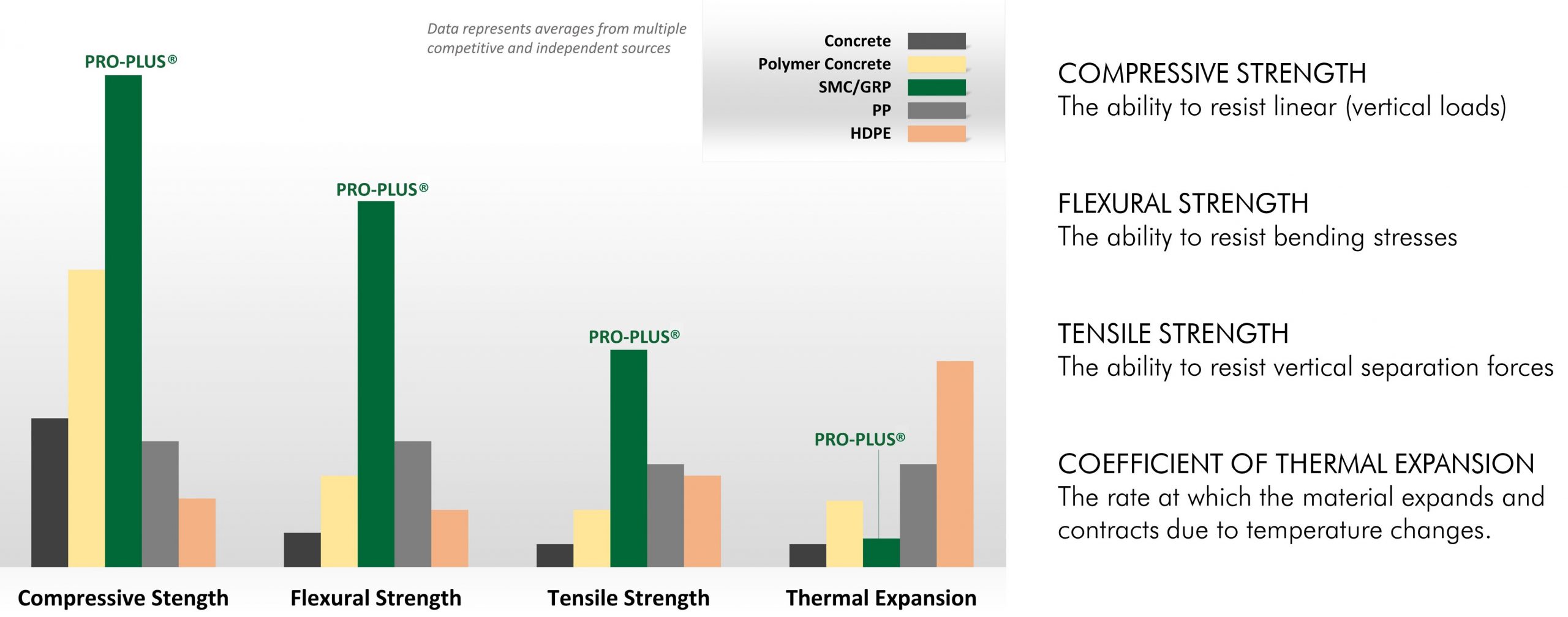

PRO-PLUS® is lighter, stronger and expands and contracts in extreme temperature ranges less than polymer concrete. In addition, SMC/GRP has greater compressive, flexural and tensile strength and less thermal expansion properties than either polypropylene or high-density polyethylene. SMC/GRP is an innovative material and is clearly superior to all other trench channel materials.

Josam’s PRO-PLUS® Trench Drain System is available in various widths and depths and offer a wide range of grates which enables Josam to provide a solution to your application needs. Dedicated and knowledgeable customer service personnel are available to assist you in selecting the right engineered trench drain system for your project.



Key Advantages of the PRO-PLUS® Trench Drain System:

- Labor Saving- Non-porous structure with a smooth surface
- Easy to handle and install- Locking-bar slots in shallowest neutral channels
- Shatterproof and extremely resistant to abrasion
- Available with PRO-SNAP grate securing system without bolts
- Lightweight – 70% lighter than polymer concrete
- SMC/GRP grate options
- 1.5 times stronger than polymer concrete
- Load class A-F (Includes GRP, steel, ductile iron, & non-metallic grate options)
- Expands and contracts less than polymer concrete, Polypropylene, & HDPE- Up to class E without a rail
- Withstands fluid temperatures of 212°F continuous and 392°F intermittent- Frost, heat, and rust resistant
- Available with and without slope
- Resistant to chemicals, oil, gasoline, hot asphalt, and tartaric acid
- Built-in rebar support brackets- Free of halogens, asbestos, and toxic heavy metals
- Two outlets per 39.4" channel section- Non-flammable
- 39.4" and 19.7" channel lengths- Complies with UL 94 HB Fire Rating
- 4" and 8" nominal interior widths- Recyclable

Josam offers a free-of-charge technical design service providing hydraulic calculations, CAD drawings, quality schedules, and product specifications. Take advantage of these technical services available to you for your next project.

PRO-PLUS Trench Drain System

PRO-PLUS Trench Drain System

PRO-PLUS Trench Drain System

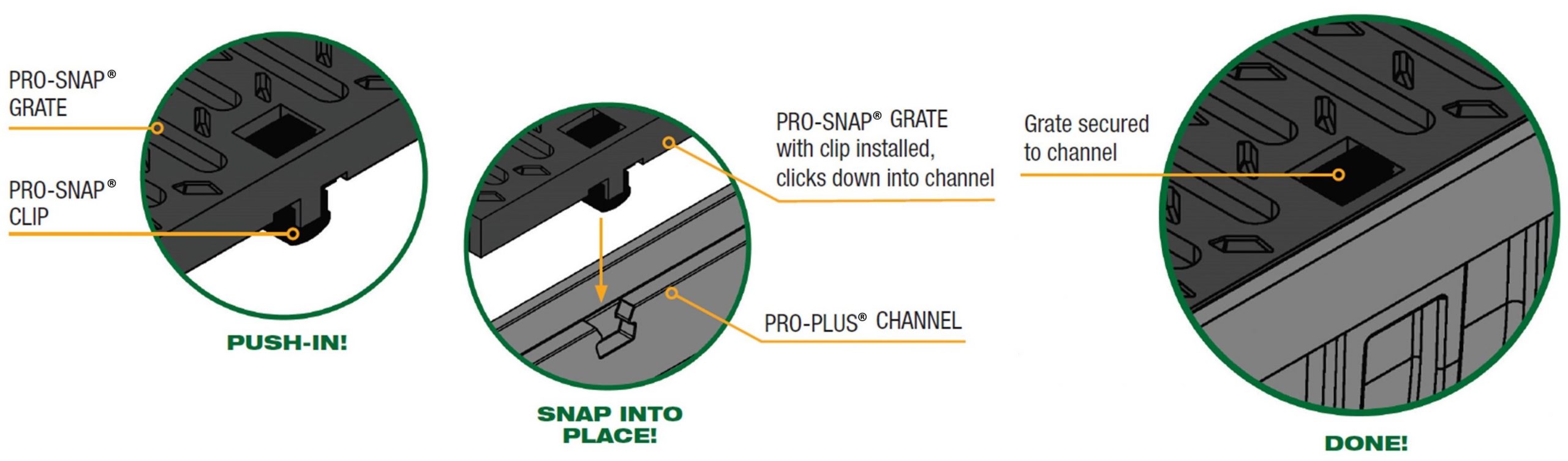

Josam’s PRO-SNAP® Grate Securing System for PRO-PLUS® Trench Drains can be secured and removed quickly & easily with a single hand movement, eliminating the use of bolts or special tools. PRO-SNAP® prevents loose or rattling grates and offers rugged protection. The closure fits flush with the channel upper surface giving an attractive draining solution.

PRO-SNAP Grate

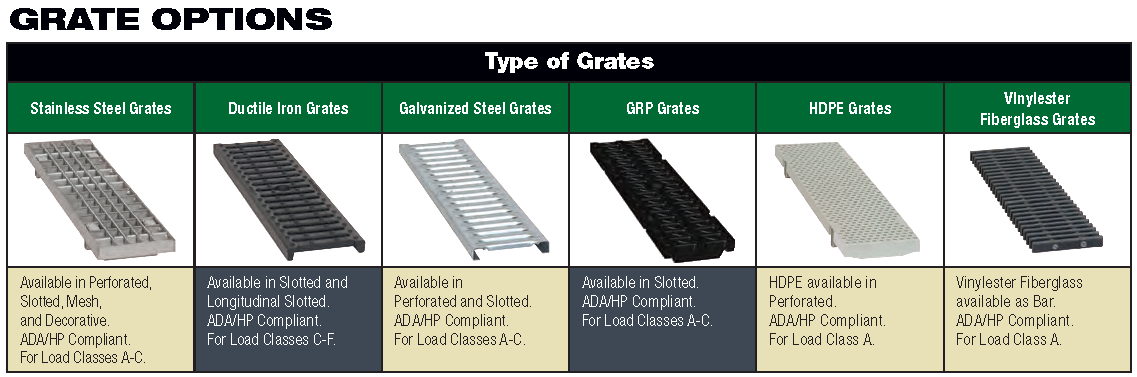

Grate Options

 PRO-PLUS Trench Drain SystemPRO-PLUS Trench Drain SystemPRO-PLUS Trench Drain System

Browse all SMC/GRP trench drain options

Find Your Local Josam Representative

Contact A Josam Customer Service Specialist
