Fixture Carriers


Refine Selection


  • Lavatory Carriers
    • Floor Mounted
    • Wall Mounted
  • Urinal Carriers
    • Floor Mounted
    • Wall Mounted
  • Sink Carriers
    • Floor Mounted
    • Wall Mounted
  • Water Cooler Carriers
  • Carrier Rough-in Guide
    • Manufacturer A-B
    • Manufacturer C-E
    • Manufacturer F-K
    • Manufacturer L-P
    • Manufacturer Q-S
    • Manufacturer T-Z

Return to All Products

yellow triangle w/exclamationWARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Learn more about this warning.
Home »  Products  »  Fixture Carriers

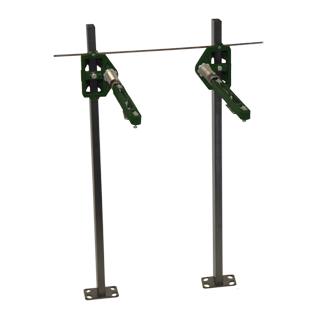

17100
17100 – Lav Carrier: Floor-Mounted Single with Concealed Arms

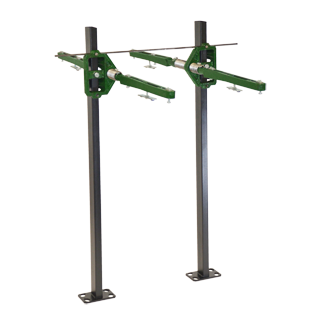

17100-BB
17100-BB – Lavatory Carrier: Floor Mounted Back-to-Back with Concealed Arms

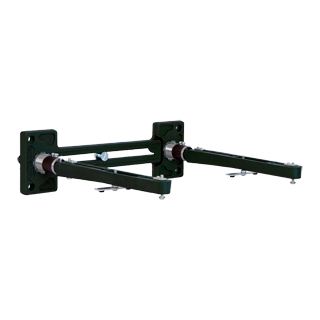

17120
17120 – Lav Carrier: Wall-Mounted with Concealed Arms & Adj. Wall Plate

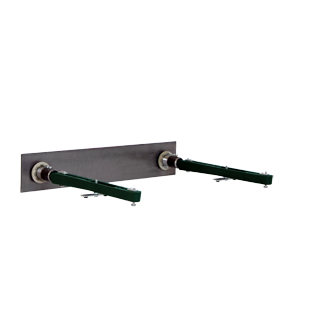

17125
17125 – Lav Carrier: Wall-Mounted with Concealed Arms & Steel Plate

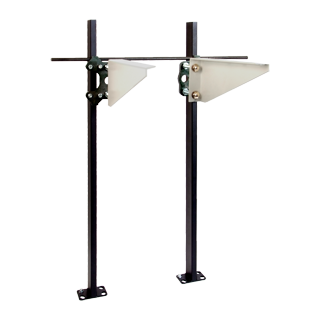

17380
17380 – Lav Carrier: Floor-Mounted Single with A.R.E. Exposed Arms

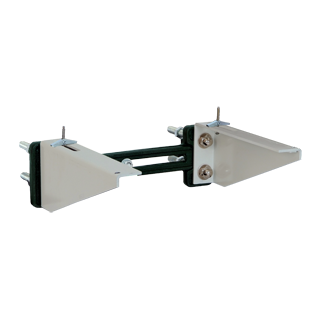

17390
17390 – Lav Carrier: Wall-Mounted A.R.E. Exposed Arms & Adj. Wall Plate

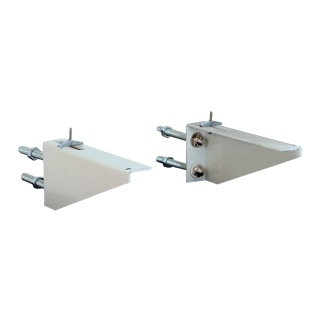

17405
17405 – Lav Carrier: Wall-Mounted A.R.E. Exposed Arms & Movable Brackets

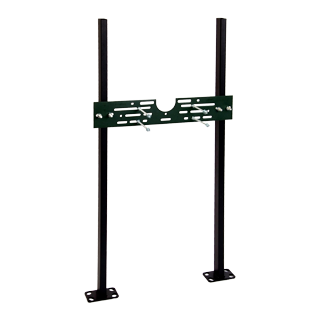

17550
17550 – Floor-Mounted Hanger Plate Type

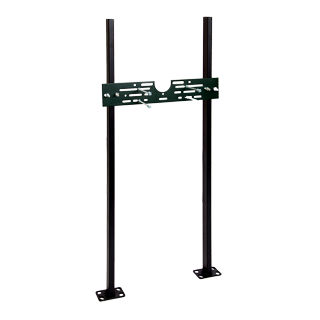

17550-UR
17550-UR – Floor-Mounted Hanger Plate Type Fixture Carrier
17550-WC
17550-WC – Floor Mounted Water Cooler Carrier

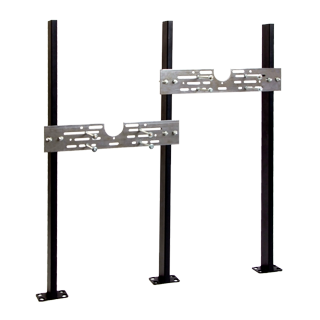

17550-WCBL
17550-WCBL – Floor Mounted Water Cooler Bi-Level Carrier

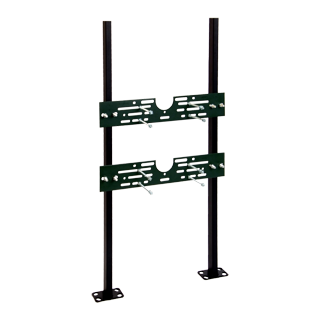

17560
17560 – Floor-Mounted Bearing Plate Type

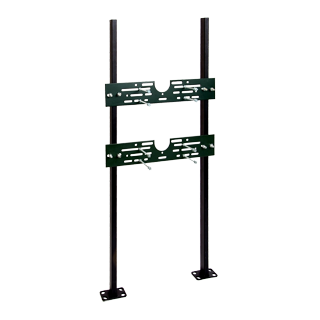

17560-UR
17560-UR – Floor Mounted Urinal Carrier with Bearing Plate

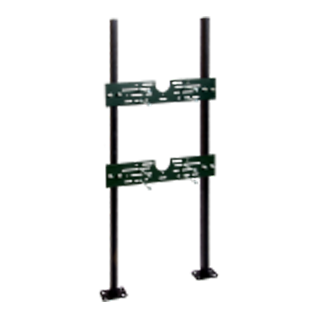

17560-WC
17560-WC – Floor Mounted Water Cooler Carrier with Bearing Plate

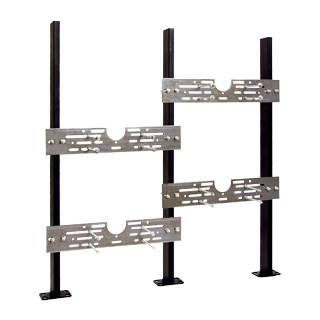

17560-WCBL
17560-WCBL – Floor Mounted Water Cooler Bi-Level Carrier

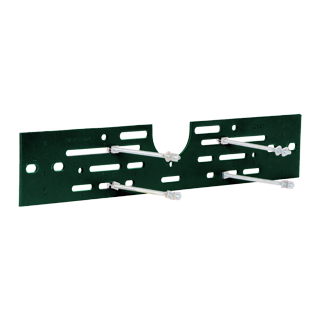

17590
17590 – Lav Carrier: Wall-Mounted Hanger Plate Type

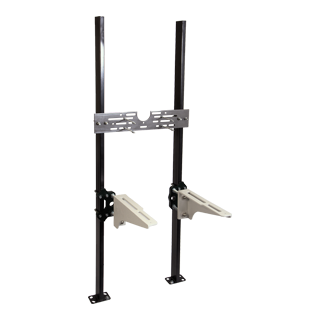

17720
17720 – Sink Carrier: Floor-Mounted Heavy-Duty Type w/Exposed Arms & Plate

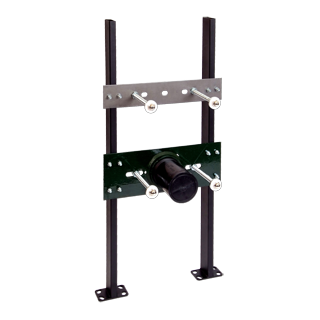

17730
17730 – Sink Carrier: Floor-Mounted Heavy-Duty Type w/4" Adj. Coupling

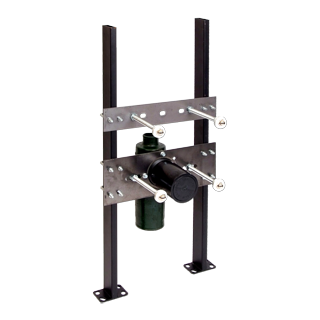

17735
17735 – Sink Carrier: Floor-Mounted Heavy-Duty Type w/4"Adj. Coupling & Fitting

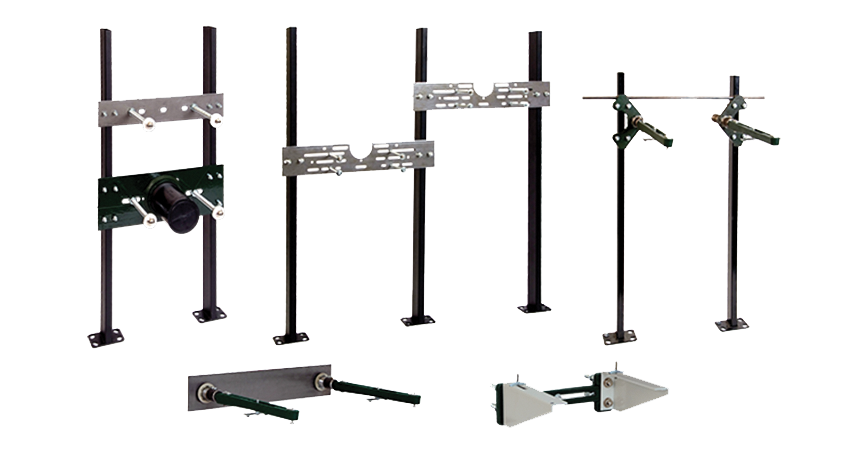

Josam offers a complete line of fixture carriers which include lavatory, sink, urinal, water cooler, hospital type and plate type carriers.
  • Lavatory carriers are for supporting lavatories with or without arms
  • Sink carriers are for supporting sinks or slab shelves
  • Urinal carriers are for supporting off-the-floor urinals
  • Water Cooler carriers are for supporting off-the-floor water coolers
  • Hospital fixture carriers are for supporting hospital sinks or lavatories with knee action valves
  • Plate type carriers are multipurpose carriers for supporting lavatory, sink, urinal, water cooler and hospital fixtures
Josam's Labor Saving 17100 Lavatory Carrier features a single bolt height adjustment and compact design for a quick and easy installation. This carrier eliminates multiple parts for header installation. It also features slot foot adjustment for squaring uprights to wall allowing the design to fit into the wall construction.

JOSAM concealed arm Lavatory Carriers secure and support lavatories by means of cast iron arms with leveling and securing devices. By virtue of their design, they accommodate all types of lavatories punched for concealed arms. The cast iron arms are furnished as standard in three different lengths. The leveling and securing methods are the same for each arm length. After the carrier is installed and the walls completed, the sleeve and arm assembly is adjusted and installation of the lavatory is made by sliding it over the arms, leveling it through the access holes provided and then securely locking it in place with the securing device.

After testing and studying many alternates for plate type carriers, Josam has designed and developed a standard hanger support and bearing plate, that can accommodate more than 300 various fixtures. A complete, easy to use "Standard Plate Application Manual" is included with every carrier. This manual gives the various plate dimensions required for a complete installation.
