Sanitary Floor Sinks - Cast Iron Floor Sink - Josam

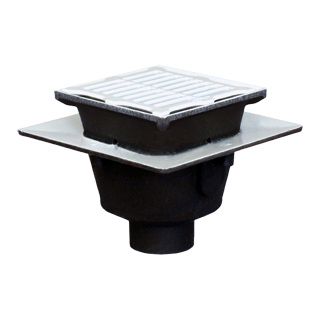

49300 – Floor Sink: 8" Square Top, 6" deep with Drainage Flange

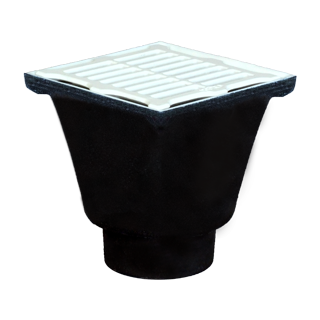

49300-LF – Floor Sink: 8 inch Square Top, 6 inch Deep, Less Flange

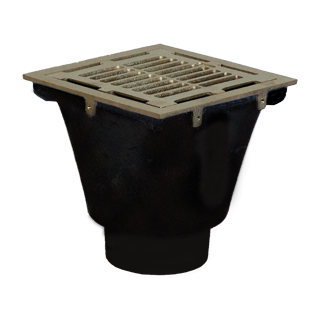

49300-LF-NB – Floor Sink: 8 inch Square Nikaloy Top, 6 inch Deep, Less Flange

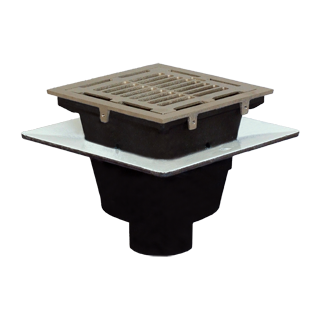

49300-NB – Floor Sink: 8 inch Square Nikaloy Top, 6 inch Deep with Drainage Flange

49320A – Floor Sink: 12" Square Top, 6" deep with Drainage Flange

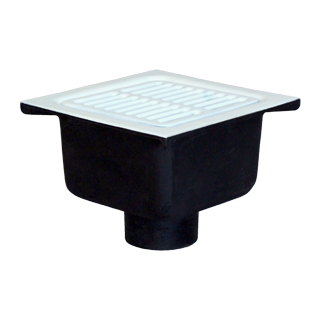

49320A-LF – Floor Sink: 12" Square Top, 6 inch Deep, Less Flange

49320A-LF-NB – Floor Sink: 12" Square Nikaloy Top, 6 inch Deep, Less Flange

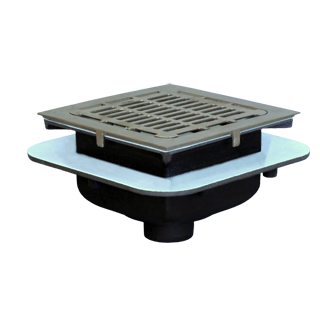

49320A-NB – Floor Sink: 12" Square Nikaloy Top, 6" deep with Drainage Flange

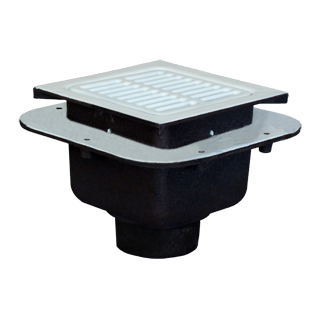

49340A – Floor Sink: 12" Square Top, 8" deep with Drainage Flange

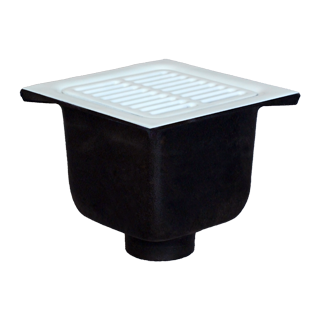

49340A-LF – Floor Sink: 12" Square Top, 8" deep, Less Flange

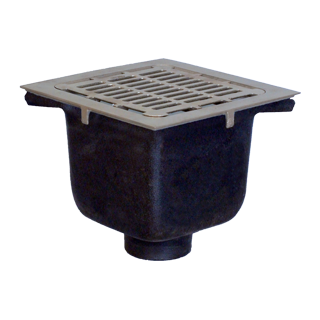

49340A-LF-NB – Floor Sink: 12" Square Nikaloy Top, 8" Deep, Less Flange

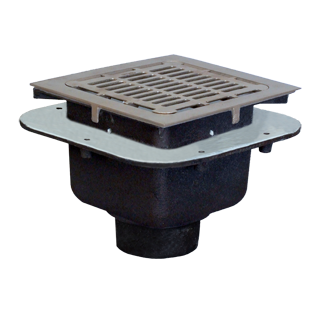

49340A-NB – Floor Sink: 12" Square Nikaloy Top, 8" Deep with Drainage Flange

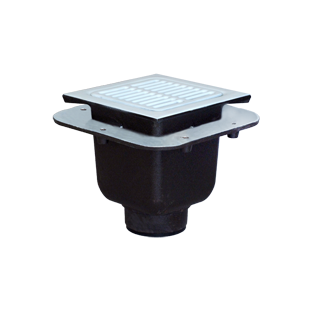

49360A – Floor Sink: 12" Square Top, 10" deep with Drainage Flange

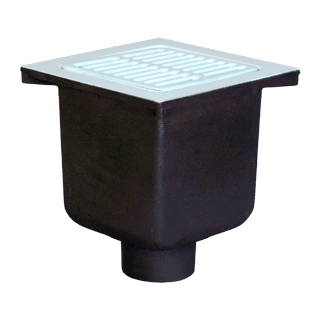

49360A-LF – Floor Sink: 12" Square Top, 10" deep, Less Flange

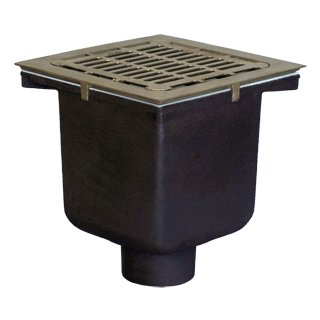

49360A-LF-NB – Floor Sink: 12" Square Nikaloy Top, 10" Deep, Less Flange

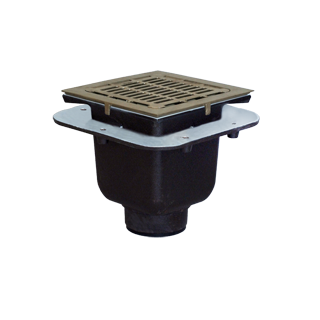

49360A-NB – Floor Sink: 12" Square Nikaloy Top, 10" Deep with Drainage Flange

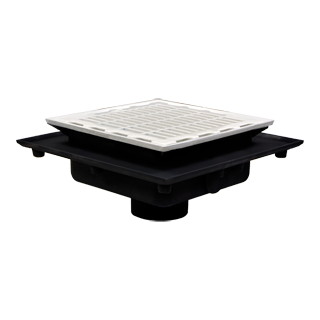

49400 – Floor Sink: 16" Square A.R.E. Top, 6" deep with Drainage Flange

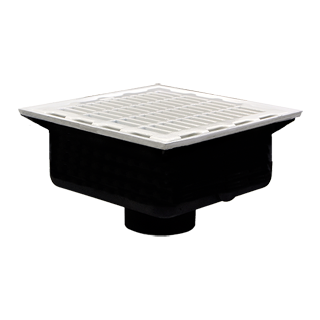

49400-LF – Floor Sink: 16 inch Square A.R.E Top, 6 inch Deep, Less Flange

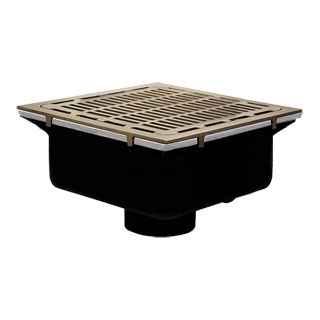

49400-LF-NB – Floor Sink: 16 inch Square Nikaloy Top, 6 inch Deep, Less Flange

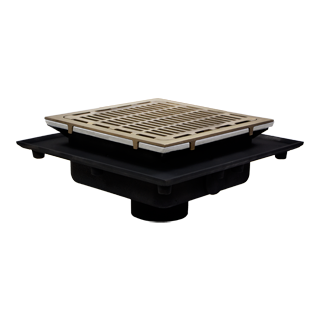

49400-NB – Floor Sink: 16 inch Square Nikaloy Top, 6 inch deep with Drainage Flange

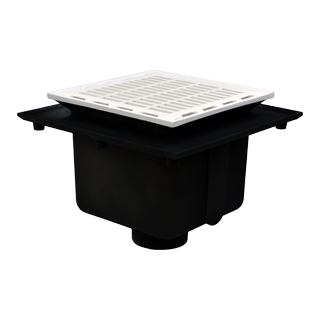

49420 – Floor Sink: 16" Square A.R.E. Top, 12" Deep with Drainage Flange

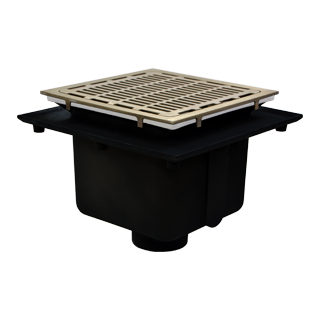

49420-NB – Floor Sink: 16 inch Square Nikaloy Top, 12 inch deep with Drainage Flange

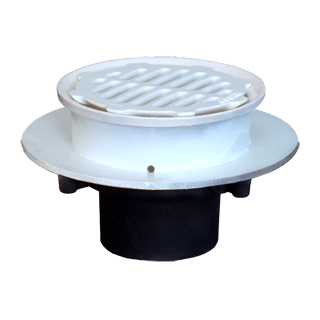

49500 – Floor Sink: 8" Round Top, 3" Deep Sump with Drainage Flange

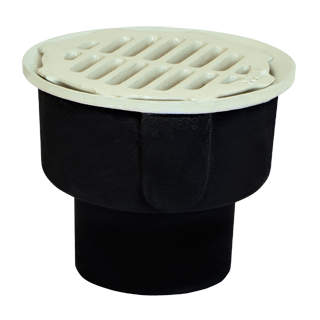

49500-LF – Floor Sink: 8 inch Round Top, 3 inch Deep, Less Flange

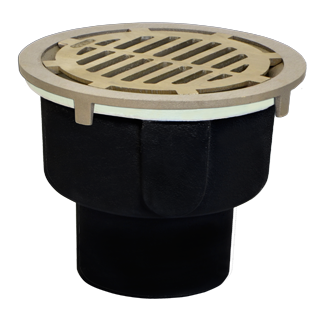

49500-LF-NB – Floor Sink: 8 inch Round Nikaloy Top, 3 inch Deep, less Flange

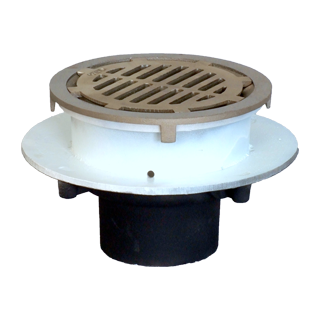

49500-NB – Floor Sink: 8 inch Round Nikaloy Top, 3 inch Deep with Drainage Flange

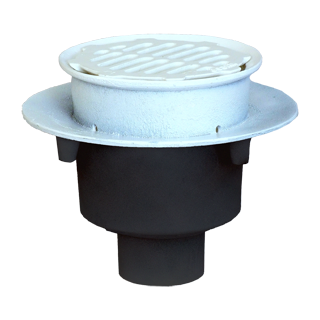

49520A – Floor Sink: 8" Round A.R.E. Top, 6" Deep with Drainage Flange

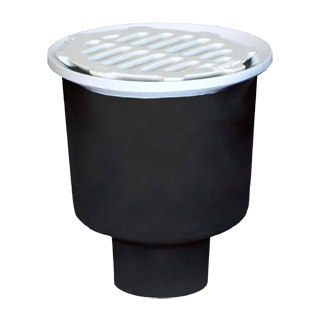

49520A-LF – Floor Sink: 8 inch Round A.R.E. Top, 6 inch Deep, Less Flange

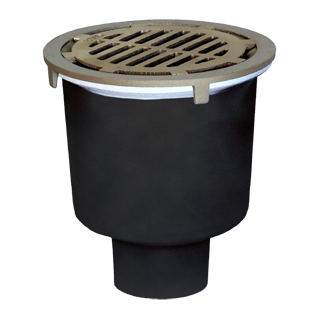

49520A-LF-NB – Floor Sink: 8 inch Round Nikaloy Top, 6 inch Deep, less Flange

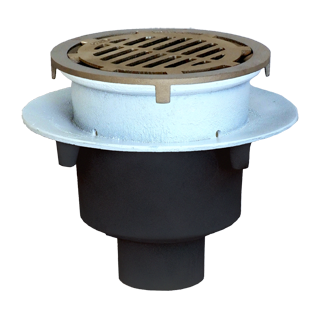

49520A-NB – Floor Sink: 8 inch Round Nikaloy Top, 6 inch Deep with Drainage Flange

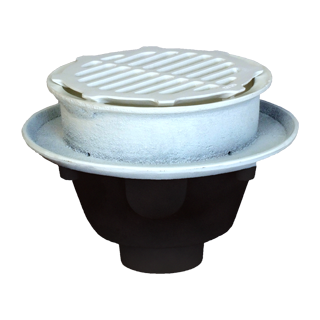

49580A – Floor Sink: 12" Round A.R.E. Top, with Drainage Flange, & 8" Deep Sump

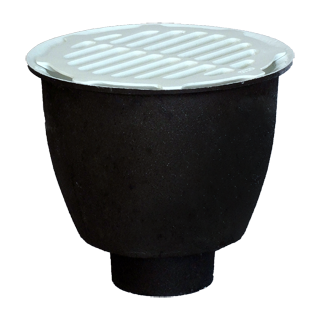

49580A-LF – Floor Sink: 12 inch Round A.R.E. Top, 8 inch Deep, Less Flange

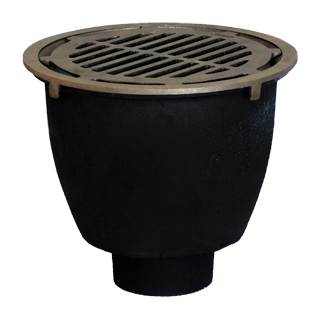

49580A-LF-NB – Floor Sink: 12 inch Square Nikaloy Top, 8 inch Deep, less Flange

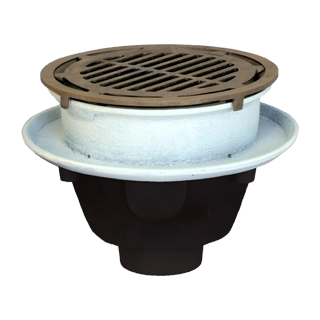

49580A-NB – Floor Sink: 12 inch Nikaloy Top, 8 inch Deep with Drainage Flange

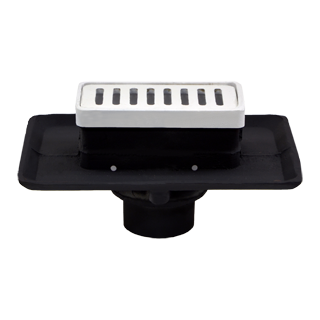

49700 – Floor Sink: 4" X 8" A.R.E. Top, with Drainage Flange

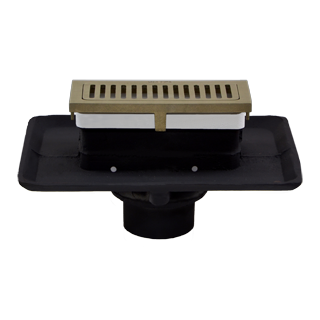

49700-NB – Floor Sink: 4"x 8" Rectangular Nikaloy Top, 4 inch Deep with Flange

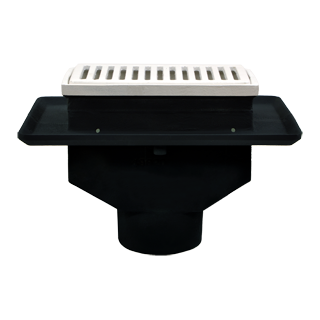

49720 – Floor Sink: 6-1/4" X 12-3/8" A.R.E. Top with Drainage Flange

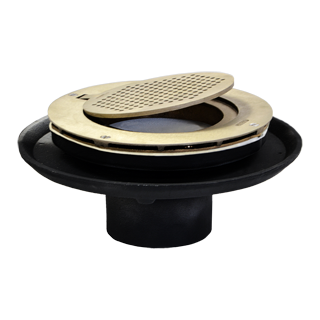

49850 – Flushing Rim Floor Sink: with 8" Hinged Nikaloy Grate

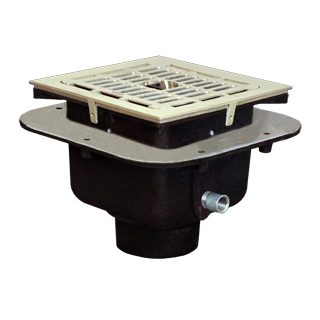

49870A – Can Wash: 12-1/2" Square Nikaloy Top w/ Drainage Flange & Spray Nozzle

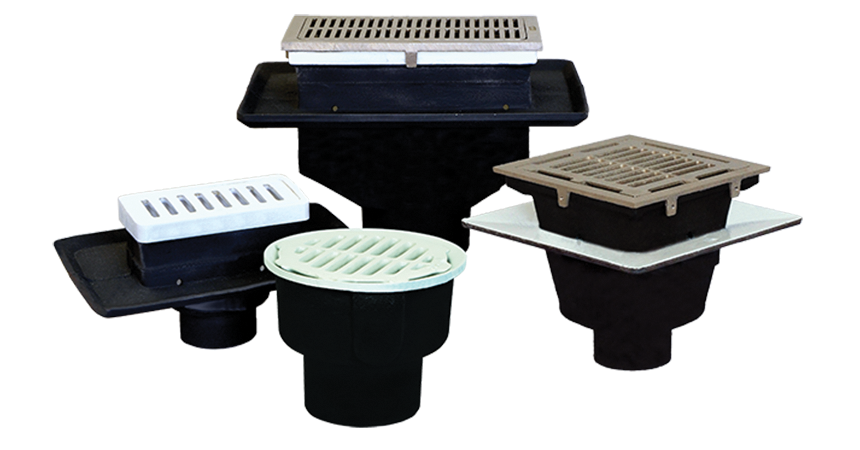

Josam offers the SUPER-FLO-SEPTOR� line of Sanitary Floor Sinks.

SUPER-FLO� GRATE AND SANITARY SLOPING RIM - This unique combination ensures that the rim portion and side walls of the drain will be washed clean with any flow of liquid.

DOUBLE DRAINAGE OR ANCHORING FLANGE - When this flange is provided, weepholes are automatically furnished to assure the drainage of any secondary moisture which may be present. The additional option of a flashing clamp device assures the positive bonding of the flashing between the double drainage flange and clamp ring.

BODY - Sanitation is promoted by the smooth, uniformly contoured interior which has no corners or crevices to escape the cleansing action of drainage flow. Available in depths of 6, 8 and 10 inches (depending on series) to suit every application.

INTERNAL DOME SUPER-FLO-SEPTORS� - have an internal dome which acts as a secondary strainer to intercept debris which could cause blockage of drain lines. The dome is easily removed to facilitate cleaning.

ACID-RESISTING INTERIOR - The acid-resisting interior, furnished standard on all SUPER-FLO-SEPTORS�, provides the smooth surface necessary for sanitation and protection from corrosion in food processing applications.

JOSAM SUPER-FLO-SEPTORS� are furnished with outlets for connection to extra-heavy, service weight or no-hub pipe. The timesaving, economical JIFFEE-JOINT is used for inside caulk connections. For outlet type, specify (-X) for inside caulk outlet and (-Z) for no-hub spigot outlet.
