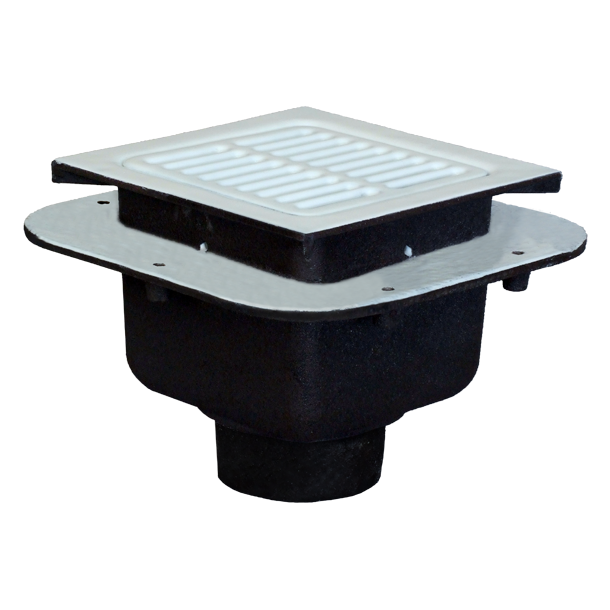

Floor Sink: 12" Square Top, 8" deep with Drainage Flange

49340A Series square cast iron 8" deep SUPER-FLO-SEPTOR Floor Sink with porcelain coated interior, double drainage flange with weepholes, bottom outlet, aluminum internal dome strainer, and cast iron, non-traffic, porcelain coated, anti-tilting grate. (A.R.E. acid resisting epoxy coating provided for domestic content requirements).

-CClamp Device -31Sediment Bucket (Aluminum)
-LFLess Flange -33Sediment Bucket (A.R. Finish C.I.)
-LGLess Grate -35Stainless Steel Mesh Bucket Liner
-NBNickel Bronze Traffic Top -43/4 Grate
-NB-HGHinged Nikaloy Grate -43Internal Dome Str (A.R. Finish CI)
-TSITrap Seal Insert -45Less Internal Dome Strainer (Alum)
-VPSecured Grate, Vandal-Proof Screws, NB -5Nikaloy Extra Heavy Duty Grate/Rim
-15Stainless Steel Rim and Grate -551/2 Inch Primer Tap
-16Grate with 4 Inch Round Funnel -7Full Grt w/2-1/2 In. Center Opening
-17Grate with 6 Inch Round Funnel -8Depressed Grate
-18Grt w/9 In. x 3-1/2 In. Oval Funnel
-20Solid Nikaloy Cover -XInside Caulk Outlet
-24Chained Grate -YHub Outlet w/Gasket, 2"-4"
-31/2 Grate -ZNo-Hub Spigot Outlet

49342A 2 50
49343A 3 50
49344A 4 50
