Backwater Valves


Refine Selection



Return to All Products

yellow triangle w/exclamationWARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Learn more about this warning.
Home »  Products  »  Backwater Valves

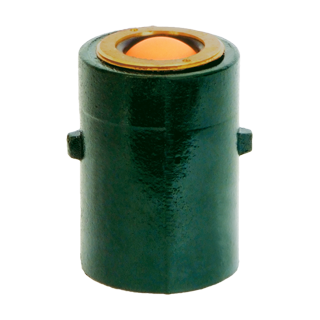

67100A
67100A – Backwater Valve: Cast Iron w/Ball-Float, Use w/Bottom Outlet Drain

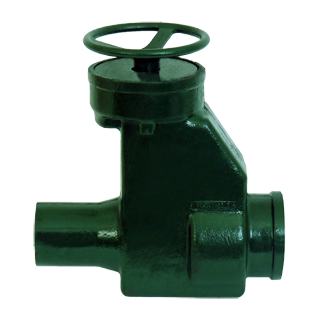

67360
67360 – Backwater Valve: Shear-Gate & Swing-Check Type w/Hub&Spigot Connections

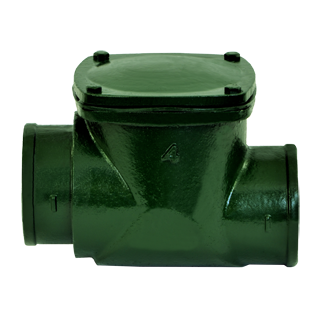

67400
67400 – Backwater Valve: Swing-Check Type w/No-Hub Connections

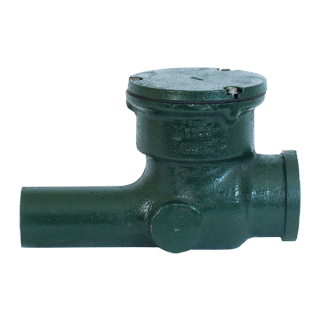

67500
67500 – Backwater Valve: Swing-Check Type w/Bolted Cover & Hub&Spigot Connection

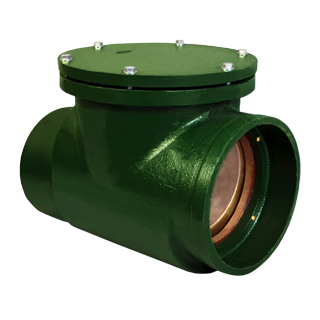

67600
67600 – Backwater Valve: Swing-Check Type w/Bolted Cover, Hub & Spigot

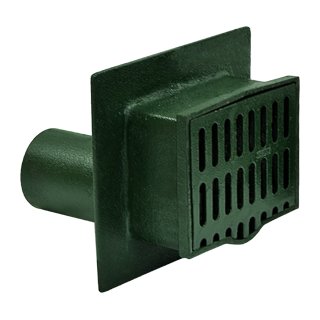

67650
67650 – Backwater Valve: Combined Drain w/Swing-Check Type

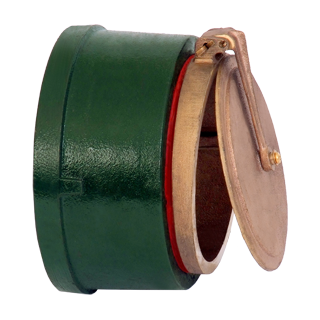

67720
67720 – Backwater Valve: Swing-Check Terminal Type w/Hub Connection

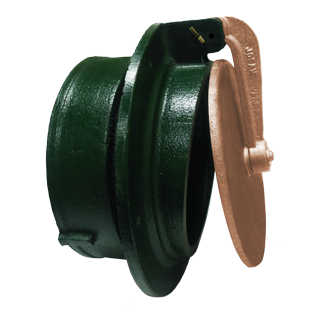

67800
67800 – Backwater Valve: Terminal Type Swing-Check BWV w/Hub Connection

Josam's backwater valves are a safeguard against water damage. Anyone who has ever experienced flooding caused by a reversal of sewage flow never wants to be confronted with a reoccurrence. Damage is extensive and generally uninsurable. Backwater and its attendant problems must therefore be seriously considered in terms of adequate control and prevention by individuals responsible for the design and construction of buildings. To overlook the possibility of backwater or underestimate the destruction and unsanitary conditions that will result from uncontrolled backwater would be a grave mistake. Josam Backwater Valves provide the flood control that is required.

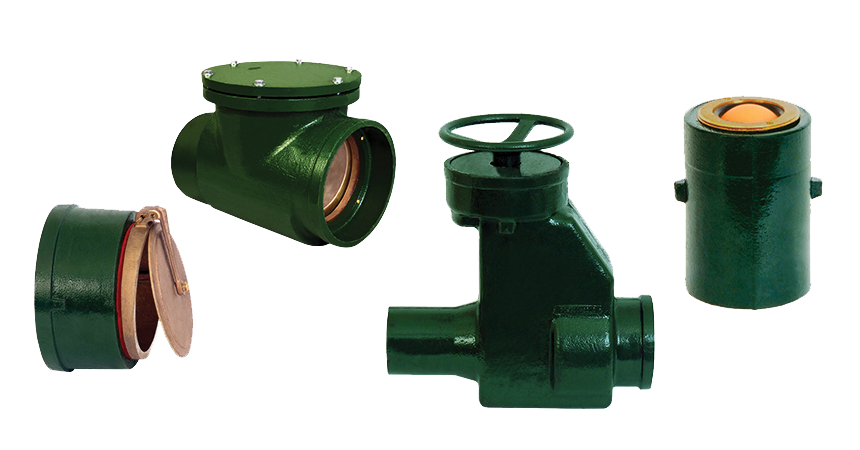

Josam offers four basic types of assemblies.

SWING-CHECK - The most frequently used backwater valve is the swing-check, rotating, self-cleaning disc type. This valve is normally furnished with the disc installed in the closed position to prevent circulation of sewer gas. If desired, the disc can be assembled to hang open to permit circulation of air by moving the hinge pin to its alternate position.

SHEAR-GATE - This manually operated shear-gate valve is spade shaped to cut through any sewage debris that may become lodged on the seating surface providing positive assurance of complete closing against backwater.

BALL-FLOAT CHECK - This type of backwater valve is incorporated in certain floor drains and traps. It is also used as auxiliary equipment for bottom outlet floor drains to provide independent backflow protection. The ball-float seals against the ring seat with backflow.

COMBINATION SHEAR-GATE AND SWING-CHECK VALVE - This combination valve provides dual protection against backflow. The automatic swing-check responds with instant closure when backflow starts. During emergency periods, when a serious backwater condition exists or is expected, or when the building drainage system is to be shut down, the manually operated shear-gate is closed until the building drain line can be used again. The shear-gate valve is kept open when the building drainage system is in use. This type of backwater valve is intended primarily for installation in new construction.
