Cleanouts


Refine Selection


  • Access Covers
  • Floor Cleanouts
  • Stainless Steel Cleanouts
  • Wall/Exposed Cleanouts

Return to All Products

yellow triangle w/exclamationWARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Learn more about this warning.
Home »  Products  »  Cleanouts

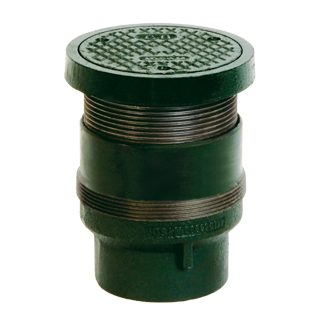

55000
55000 – Kleenatron II: Special Duty Leveleze

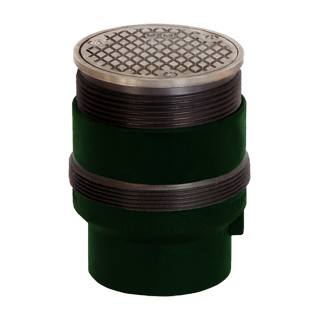

55000-SS
55000-SS – Kleenatron II: Leveleze with Stainless Steel Top

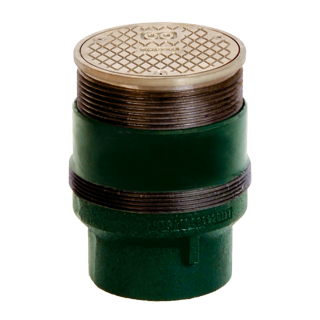

55000-1
55000-1 – Kleenatron II: Leveleze with Nikaloy Top

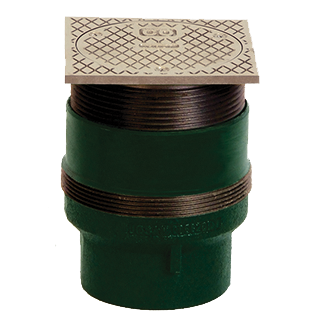

55000-1-SQ
55000-1-SQ – Kleenatron II: Medium Duty Leveleze with Square Nikaloy Top

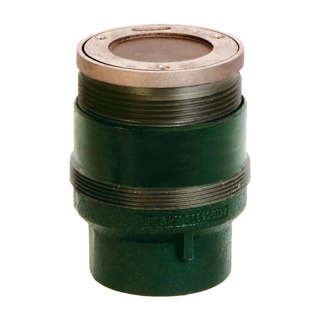

55000-1-12
55000-1-12 – Kleenatron II: Leveleze with Nikaloy Top Recessed for Tile

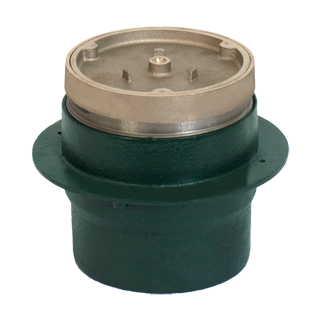

55000-1-13
55000-1-13 – Kleenatron II: Leveleze with Nikaloy Top with TerrazzoTile Cover

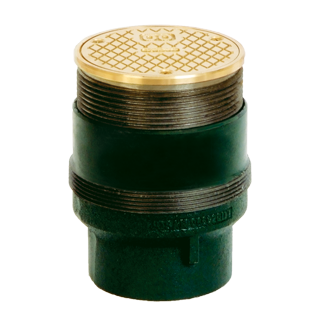

55000-2
55000-2 – Kleenatron II: Leveleze with Bronze Top

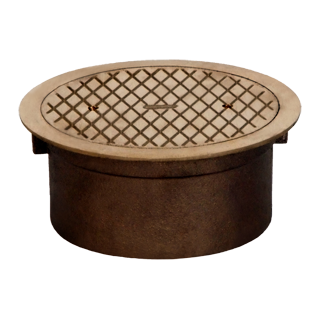

56670
56670 – Cleanout: Round Nikaloy Top w/Spanner Type Threaded Cover.
56670-SS
56670-SS – Cast Stainless Steel Cleanout
57000
57000 – Cleanout: Round Nikaloy Adj. Top, on CI Body w/ABS Plug & Gasket

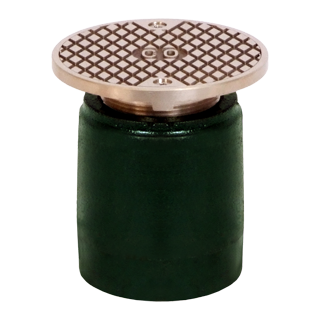

58360
58360 – Cleanout: Round Adj. Nikaloy Top w/Bronze Plug & No-Hub Outlet

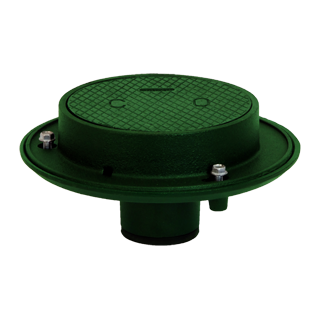

58460A
58460A – Cleanout: Round C.I. Top with Bronze Plug

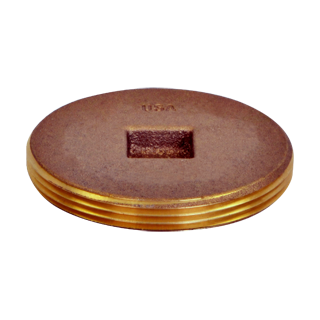

58540
58540 – Cleanout: Recessed Threaded Bronze Plug

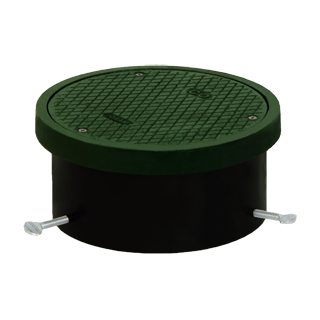

58580
58580 – Cleanout: ABS Housing w/Heavy Duty C.I.Top

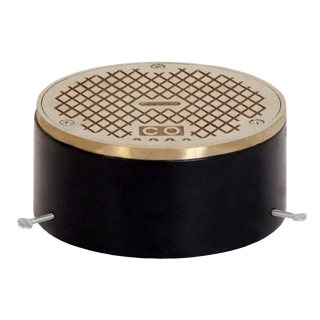

58580-1
58580-1 – ABS Housing w/Medium Duty Nikaloy Top

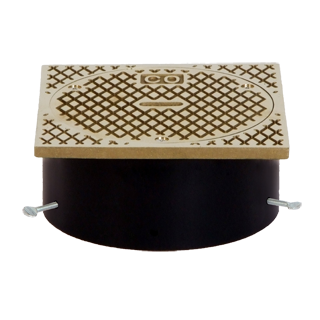

58580-1-SQ
58580-1-SQ – ABS Housing with Medium Duty Square Nikaloy Top

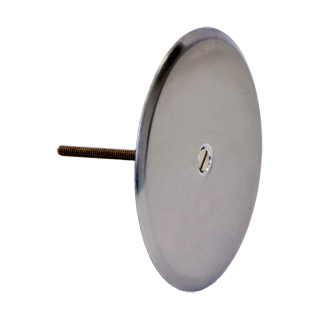

58600
58600 – Cleanout: Stainless Steel Wall Access Cover & Screw

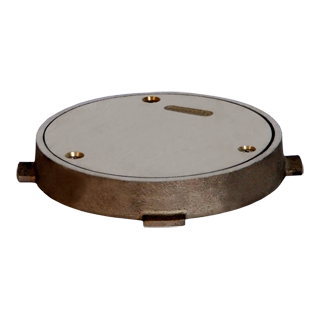

58610
58610 – Cleanout: Round Nikaloy Wall Or Floor Access Frame & Cover, 6" Dia.

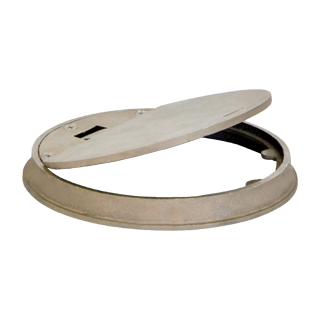

58620
58620 – Cleanout: Round Hinged Nikaloy Wall Or Floor Access Frame & Cover

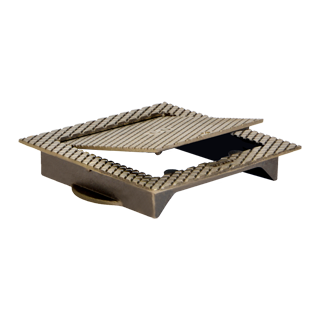

58630
58630 – Cleanout: Square Scoriated Secured Nikaloy Frame & Hinged Cover

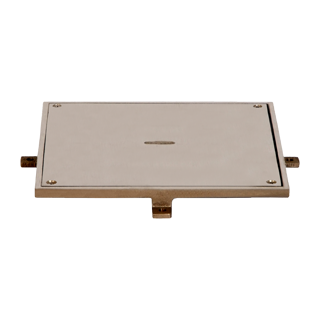

58640
58640 – Cleanout: Square Secured Cast Nikaloy Access Frame & Cover
58650
58650 – Cleanout: Wall Access Cover

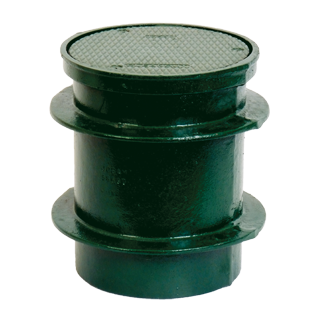

58680
58680 – Cleanout: Round Cast Iron Frame w/Anchor Flanges & Heavy Duty Cover

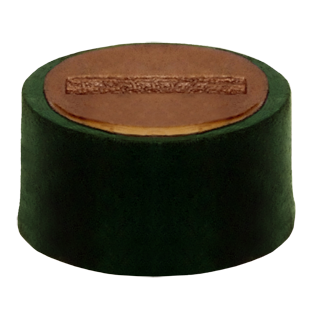

58900
58900 – Cleanout: C.I. No-Hub Cleanout Ferrule & Plug

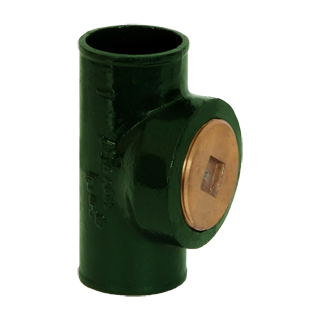

58910
58910 – Cleanout: C.I. No-Hub Cleanout Tee & Plug

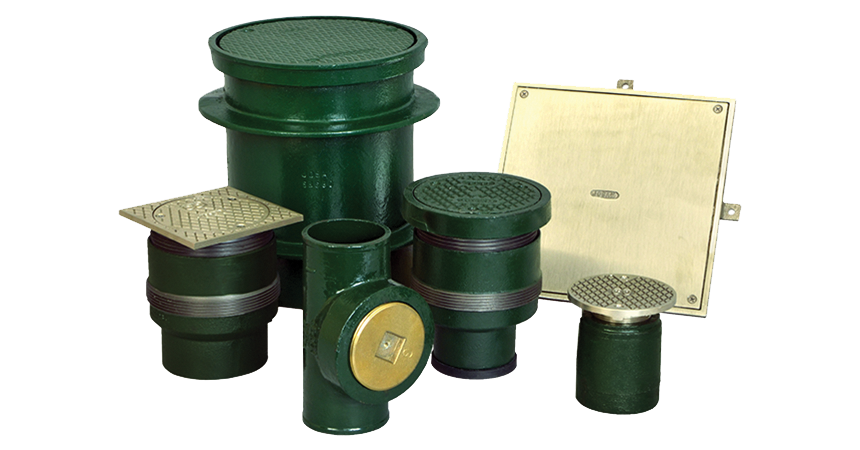

Josam's labor saving Leveleze II, 2-stage adjustable cleanouts offer adjustable height before and after the concrete pour. The cleanouts are for use in finished or unfinished floors subject to pedestrian, light wheel traffic such as schools, hospitals, and shopping malls where the recessed cover accepts terrazzo flooring or where direct access to drain or waste line is desired, and heavy wheel traffic or impact loads such as warehouses, loading docks and warehouse stores. Top design allows for unimpaired adjustment even as the floor is being poured. Other options include wall or floor access frame and cover.

Josam's KLEENATRON® II Cleanouts incorporate features developed to meet the latest in building construction methods. These features ensure the specifier, installer and user of completely trouble-free installation and performance.

Josam's cleanouts offer a wide choice of tops and covers for every area. Round-square, tile-terrazzo, medium-special-duty. Standard cast iron secured cover has special duty rating testing over 10,000 lb. (4500 kg.) ASME 112.6.3-2001. 55000. Adjustable Bushing Precision machine threaded cast iron bushing provides LEVELEZE® adjustment, non-tilting top. Body protects threads from concrete, allowing adjustment after pour.

They feature easy in - easy out closure plug abs - a plastic closure plug with gas-tight sealing tapered threads. Cast iron body with interior threads to provide unimpaired LEVELEZE® adjustment of top section. Optional flashing flange that mates with machined exterior thread on ferrule to provide watertight connection without the additional use of sealant. Optional clamp ring to secure waterproof membrane to flashing flange.
