Trench Drains and Channel Drains


Refine Selection


  • Cast Iron Trench Drains
  • Trench Grate & Frame
  • Stainless Steel Trench Drains
  • PRO-PLUS® Trench Drains
    • PRO-PLUS® 100 Grates
      • 100 PRO-SNAP® Grates
      • 100 Locking Bar/Bolt Down Grates
    • PRO-PLUS® 200 Grates
      • 200 PRO-SNAP® Grates
      • 200 Locking Bar/Bolt Down Grates
  • Lite Line Trench Drain

Return to All Products

yellow triangle w/exclamationWARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Learn more about this warning.
Home »  Products  »  Trench Drains and Channel Drains
TD-130
TD-130 – TD-130 Shallow HDPE Channel

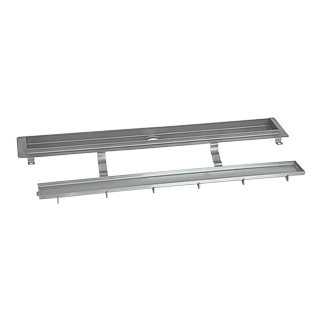

46200
46200 – STAINLESS STEEL SHOWER CHANNEL
46300
46300 – 46300 SERIES STAINLESS STEEL TRENCH DRAIN 6" WIDE WITH SS GRATING.

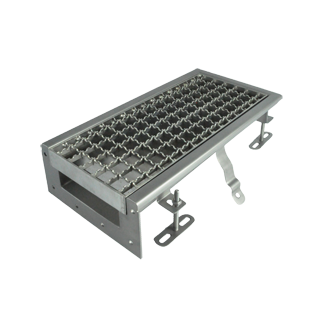

46400
46400 – 46400 SERIES STAINLESS STEEL TRENCH DRAIN 8" WIDE WITH SS GRATING.
46600
46600 – 46600 SERIES STAINLESS STEEL TRENCH DRAIN 12" WIDE WITH SS GRATING
46800
46800 – 46800 SERIES STAINLESS STEEL TRENCH DRAIN 16" WIDE WITH SS GRATING.

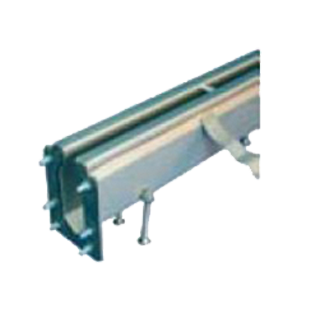

47100
47100 – HEEL-PROOF STAINLESS STEEL SLOT TRENCH DRAIN (5/16")

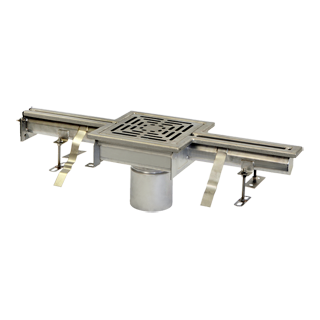

47200
47200 – STANDARD STAINLESS STEEL SLOT TRENCH DRAIN (3/4")

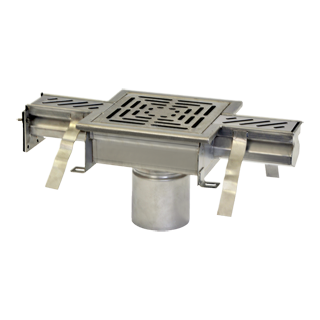

47300
47300 – MINI 3" WIDE SS CHANNEL/GRATING FOR USE W/ OUTLET BOX

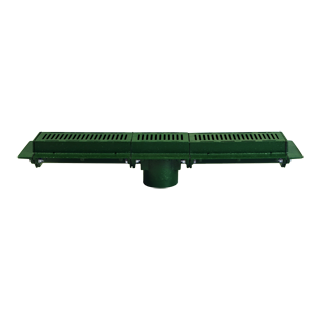

76000
76000 – Trench Drain: 6" Wide w/Heavy-Duty CI Grate per Section (Outlet=9"L, Ext=15"L)

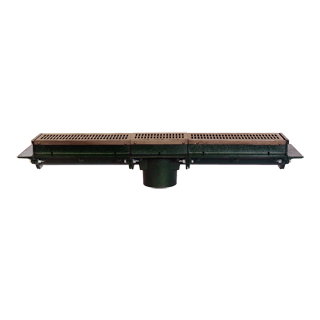

76000-1
76000-1 – Trench Drain: Super-Flo 6 inch wide, Rectangular with Nikaloy Top

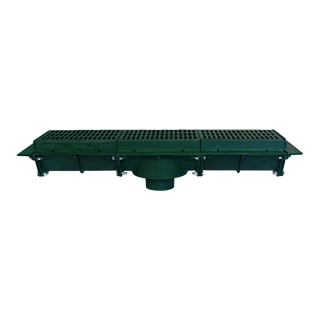

76010
76010 – Trench Drain: 12" Wide X 15" Section w/Heavy-Duty Cast Iron Grate

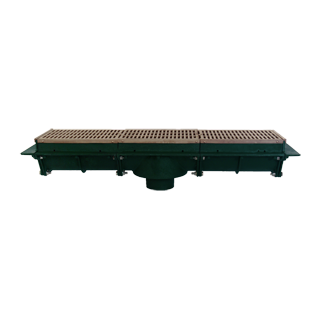

76010-1
76010-1 – Trench Drain: 12 inch Wide Rectangular with Nikaloy Top

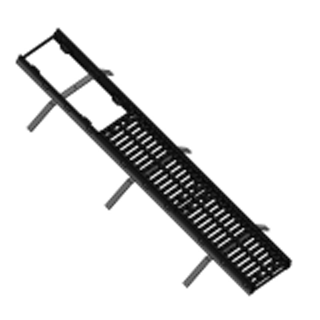

76200
76200 – 76200 Series Cast Iron Frame and Grate Assembly

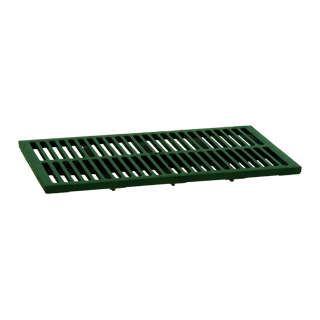

76300
76300 – Trench Grate: Rectangular 12" X 20" Light Duty Cast Iron Grate

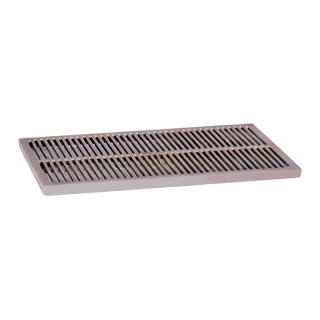

76300-1
76300-1 – Trench Grate: Light-duty Rectangular Nikaloy Grate
76400
76400 – Trench Grate: 20 X 24" Light Duty, 2 Cast Iron Grates & Frame, 76402
76500

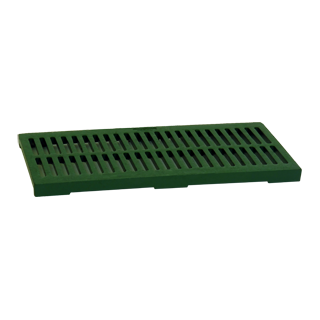

76500 – Trench Grate: Rectangular 12" X 24" Medium Duty C.I. Grate Only
76500-1

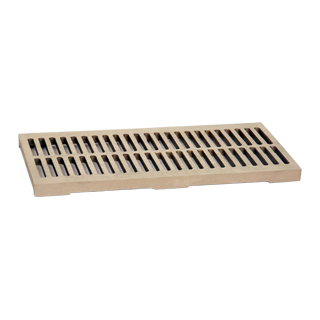

76500-1 – Trench Grate: Medium-Duty Rectangular Nikaloy Grate
76600
76600 – Trench Grate: Rectangular 24 X 24" Medium Duty 2 CI Grates & Frame,76602

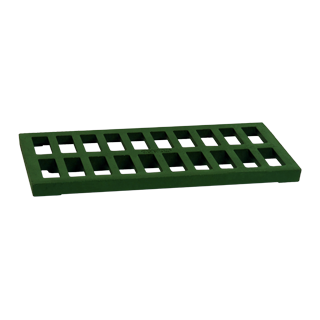

76700
76700 – Trench Grate: Rectangular 12" X 24" Heavy Duty C.I. Grate Only
76700-1

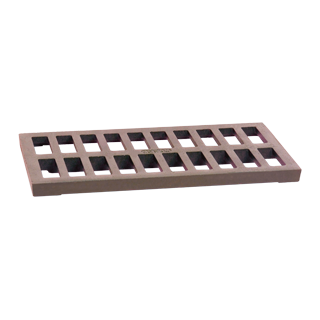

76700-1 – Trench Grate: Heavy-Duty Rectangular Nikaloy Grate
76800
76800 – Trench Grate: Rectangular 24" X 24" Heavy Duty C.I. Grate & Frame, 76802

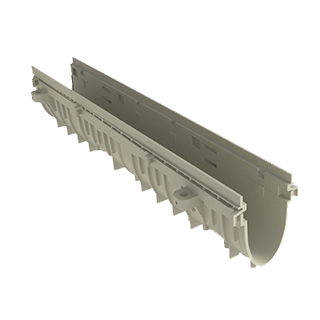

PRO-PLUS 100C
PRO-PLUS 100C – PRO-PLUS® 100C 4" nom. 6" ext. SMC/GRP Trench Drain with or without slope

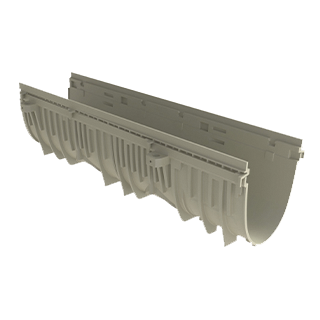

PRO-PLUS 200C
PRO-PLUS 200C – PRO-PLUS® 200C 8" nom. 10" ext SMC/GRP Trench Drain with and without slope

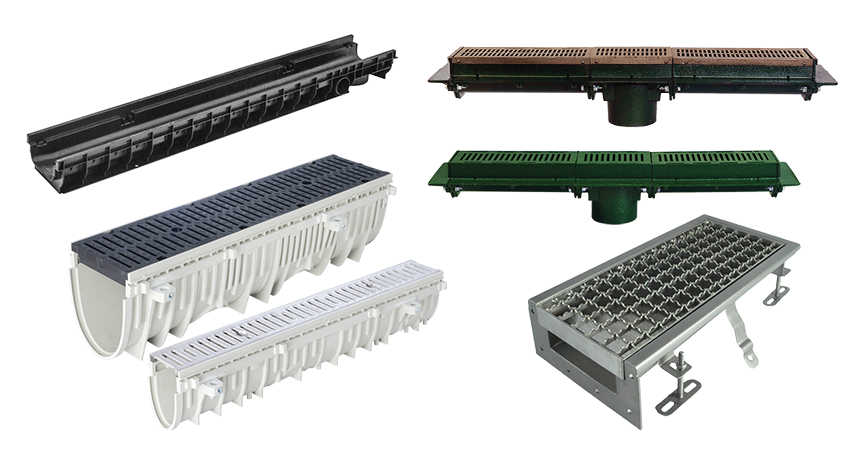

Josam offers Trench Drains and Channel Drains in SMC/GRP, Stainless Steel, Cast Iron, and HDPE. Many options are available to meet demands for heavy duty to light commercial applications.

SMC/GRP - Josam's PRO-PLUS® trench drain system is manufactured using glass-fiber reinforced polyester (GRP) pressed from sheet molding compound (SMC), which is a composite of polyester resin, mineral fillers, and glass-fiber mats. The PRO-PLUS® Trench Drain System is available in 39.4" and 19.7" channel lengths and 4" and 8" nominal interior width with a wide range of grates which enables Josam to provide a trench drain solutions for your installation requirements.

PRO-PLUS® trench drains are perfect for applications such as sidewalks, swimming pools, shopping areas, parking lots, loading docks, commercial kitchens, breweries, airports, and various building facilities.

Stainless Steel - Josam provides stainless steel trench drains to suit project requirements. Customized drawings are prepared for each trench drain order. Standard features include:
  • 6", 8", 12" and 16" grate widths
  • 3" through 8" no-hub outlets for easy connection to existing piping
  • Mid-run or end bottom outlets
  • Edge backfilling to eliminate voids and provide extra support
  • With or without built-in slope
  • Leveling feet for ease of height adjustment
  • Concrete anchor tabs
  • One-piece sections available up to 13 feet long. Longer lengths provided with flanged connections.
  • Grates for the lightest to heaviest loads
Cast Iron - Options include is for pedestrian and light wheel traffic areas, medium traffic areas, and heavy traffic areas where a concrete or similarly constructed trench is present or in heavy traffic areas where a wide, continuous trench drain that can serve as a temporary reservoir for large quantities of water is required, such as in parking garages, vehicle repair facilities, manufacturing plants and ramps. An outlet section can be used individually as an area drain.

HDPE - Josam's Lite-Line Trench Drain System is a neutral shallow channel made of HDPE. The Lite-Line HDPE shallow trench drain is a lightweight channel that is strong and durable. It is a low-cost option designed to maximize water flow and meet your drainage demands.
