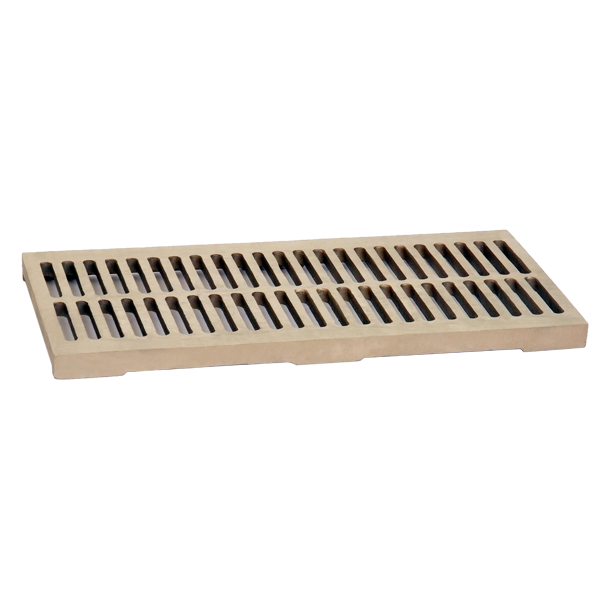

Trench Grate: Medium-Duty Rectangular Nikaloy Grate

Specification
76500-1 Series Nikaloy rectangular medium-duty sectional Trench Grate and available stainless steel frame (when specified), 12" x 24" with 1/2" x 4-3/8" grate openings.

Options
-VP	Secured Grate, Vandal-Proof Screws	-8-2	All Bronze with Satin Finish Top

Type #	C LENGTH	LBS
76500-1	24"	40
76501-1	24-5/8"	57
76502-1	48-5/8"	108
76602-1	24-5/8"	103
