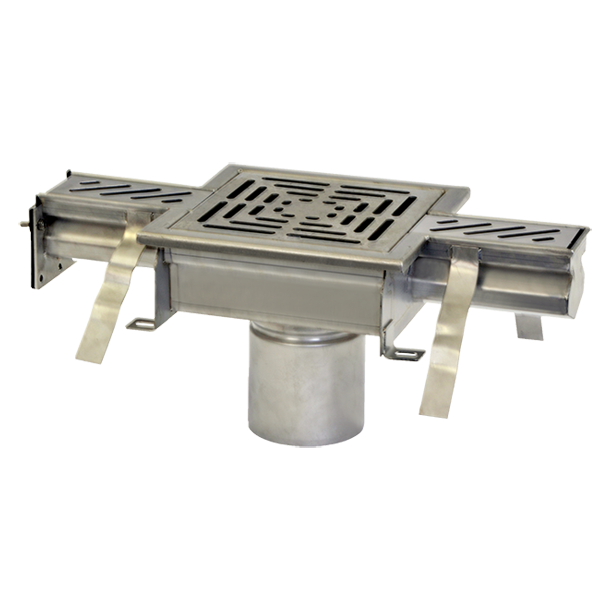

MINI 3" WIDE SS CHANNEL/GRATING FOR USE W/ OUTLET BOX

Specification
Josam series 47300 fabricated stainless steel (type 304, 1.5mm), 3" wide, v-shaped bottom, available with or without slope (1% std), with anchor tabs and leveling feet, outlet box with bottom connection and perforated grate. Run lengths longer than 13' provided with flanges, gaskets, and hardware.

Options
-BW	Butt-Weld Outlet (avail 10,40,80)	-VP	Secured Grate
-FB	Filter Basket	-316	Type 316L Material
-SB	Sediment Bucket	TD.LENGTH	Total Run Length

Type #	GRATE TYPE
47312	REINFORCED
47313	"
47314	"
