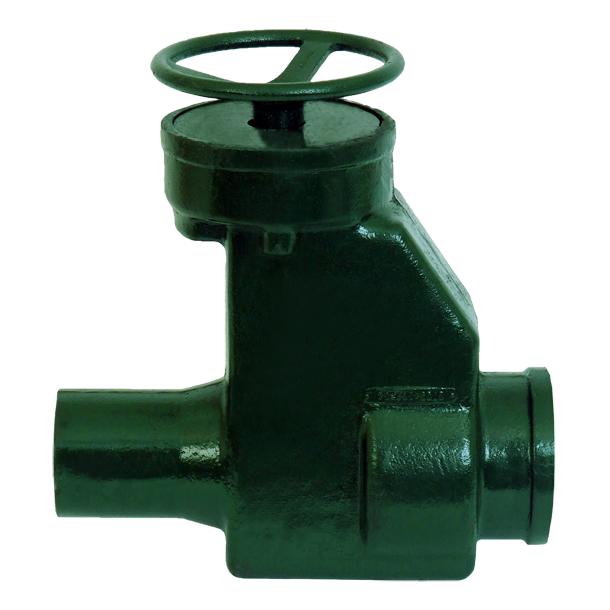

Backwater Valve: Shear-Gate & Swing-Check Type w/Hub&Spigot Connections

Specification
Series coated cast iron combination Backwater Valve, straight-through type, bronze swing-check assembly, bronze manually operated shear-gate with non-rising stem, hub and spigot connections.

Options
-DHDouble Hub -2812 Inch Cast Iron Extension & Stem
-15Open Flap -2924 Inch Cast Iron Extension & Stem

Type # PIPE SIZE  B  C  E  LBS
67363 3 8 12 17-1/2 80
67364 4 8 12 17-1/2 80
67365 5 10-1/2 14-1/2 19-1/2 120
67366 6 10-1/2 14-1/2 19-1/2 120
