Stack Flashing Fitting: Cast Iron w/Flashing Recess

Warning Cross Reference for J.R. SMITH 1750 is Josam 26440.


Specification

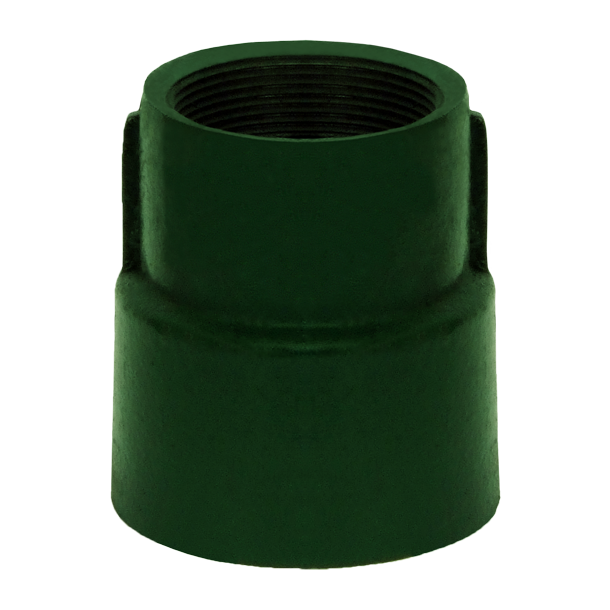

26440 Series coated cast iron Stack Fitting with counterflashing recess, threaded stack and extension connections.

Application
Used as a counterflashing sleeve where the roofing membranes are terminated at the stack, which passes through the roof. Sleeve is threaded so that the stack may be extended to the desired elevation.

Options
-20Galvanized Cast Iron Parts

Type # PIPE SIZE  B  C  LBS
26441-1/2 1-1/2 3-1/4 5-3/8 4
26442 2 3-1/4 5-3/8 3
26443 3 4-1/4 5-3/8 4
26444 4 5-1/2 5-3/8 6
26445 5 6-1/2 5-3/8 10
26446 6 7-1/2 5-3/8 10
