Floor Drain: Deep Sump w/Extra Heavy Duty C.I. 15" Top & 8" Deep Bucket

Warning Cross Reference for MIFAB F1370 is Josam 34720.
     For best match use: -70.

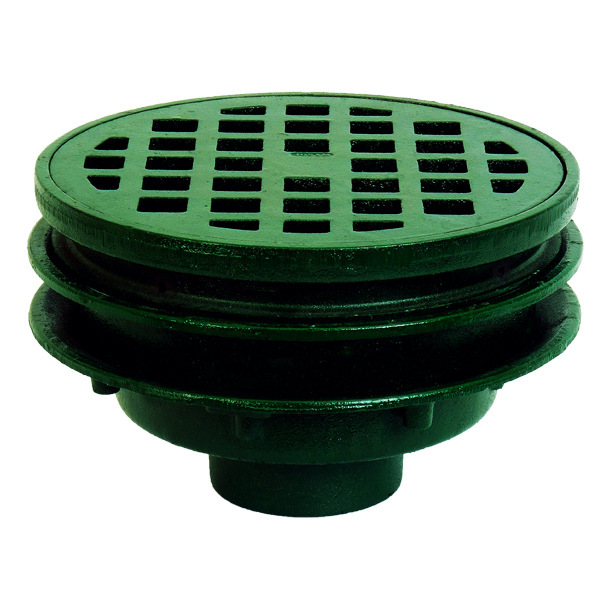

34720 Series coated cast iron Floor Drain with two-piece body, double drainage flange, WEJLOC non-puncturing flashing clamp collar, weepholes, bottom outlet, round top, loose-set extra heavy-duty grate and removable sediment bucket.

-TSITrap Seal Insert -84S.S. Mesh Bucket Liner
-VPSecured Grate, Vandal-Proof Screws -88Supplementary Strainer
-15Chained Grate -92Galvanized Cast Iron Parts
-19C.I. Undergrate w/Satin Fin Nik Top
-20C.I. Undergrate w/Satin Fin Brz Top -XInside Caulk Outlet
-493/4 Inch Primer Tap -ZNo-Hub Spigot Outlet
-501/2 Inch Primer Tap -66No-Hub Side Outlet
-7Ductile Iron Grate

34723 3 80
34724 4 81
34725 5 82
34726 6 83
