Floor Drain: 8" Square Top w/Heavy Duty Cast Iron Grate

Warning Cross Reference for MIFAB F1420-C is Josam 35100.


Specification

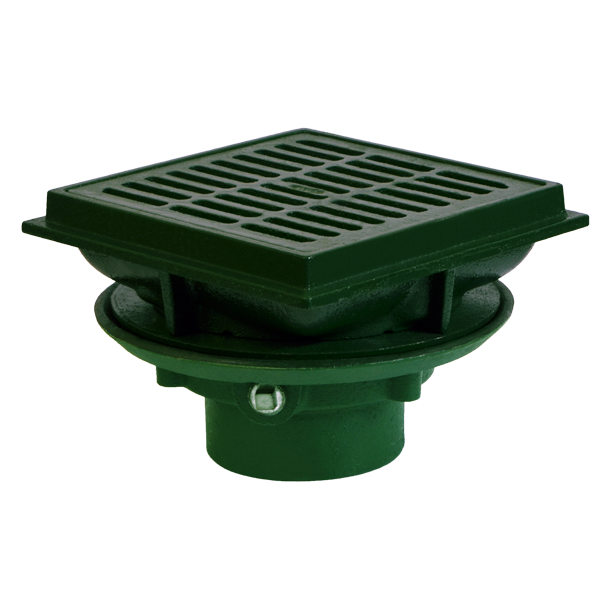

35100 Series coated cast iron Floor Drain, two-piece body with double drainage flange, WEJLOC non-puncturing flashing collar, weepholes, bottom outlet, square top and heavy-duty, loose-set grate.

Options
-AREAcid-Resisting Epoxy -7Ductile Iron Grate
-TSITrap Seal Insert
-1Satin Finish Nikaloy Top -TThreaded Outlet
-15Chained Grate -XInside Caulk Outlet
-2Satin Finish Bronze Top -YHub Outlet w/Gasket, 2"-4"
-493/4 Inch Primer Tap -ZNo-Hub Spigot Outlet
-501/2 Inch Primer Tap TSOThreaded Side Outlet

Type # PIPE SIZE  LBS
35102 2 36
35103 3 36
35104 4 36
