Roof Drain: Green roof drain, large sump, wide roof flange, bottom outlet

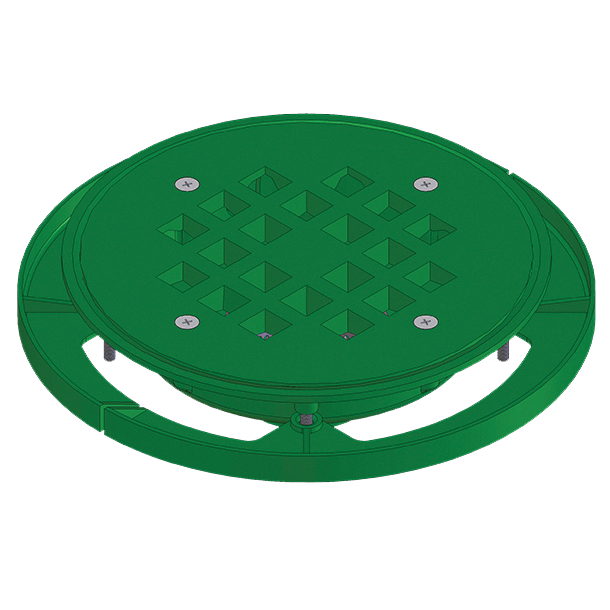

21500-FG3 Series coated cast iron Roof Drain with flat grate integral with flashing clamp, large sump with wide roof flange and bottom outlet connection.

-AELEVELEZE Adjustable Extension -3CDrain Receiver and Drain Receiver Clips
-AERAdjustable Extension using Threaded Rod/Hdwe -4Secondary Flashing Clamp (use with -AE only)
-PCPerforated Cover -6Extra Wide Flange Drain Body, -X Only
-1Deck Clamp Assembly
-1CPDrain Receiver Clips -TThreaded Outlet
-10Fixed Ext Collar, CI (spec. ht.) -XInside Caulk Outlet
-10-20Fixed Exn Collar, Galv. (spec. hgt.) -YHub Outlet w/Gasket, 2"-4"
-2Drain Receiver -ZNo-Hub Spigot Outlet
-20Galvanized Cast Iron Parts -66No-Hub Side Outlet
-3Deck Clamp Assembly & Drn Receiver

21502-FG3 2 36
21503-FG3 3 37
21504-FG3 4 38
21505-FG3 5 39
21506-FG3 6 40
21508-FG3 8 42
21509-FG3 10 43
