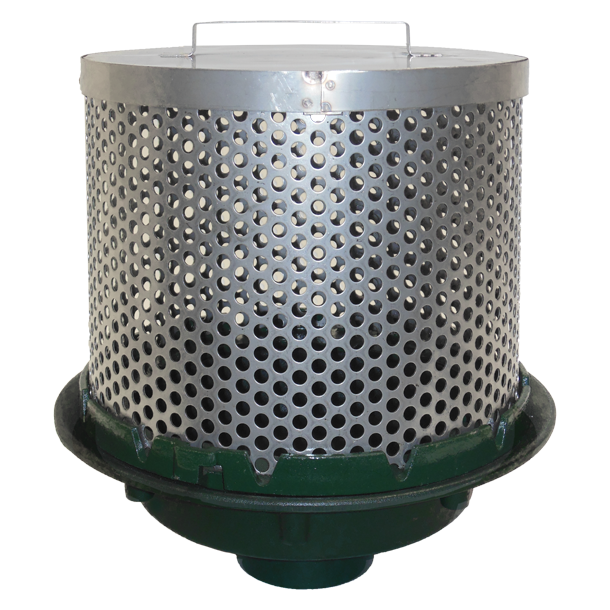

Roof Drain: Green Roof Type with Perforated Standpipe

21500-ORDG1 Series coated cast iron roof drain body and clamp ring with stainless steel gravel stop and secured cover and PVC standpipe with orifice. For use on Green Roof applications.

-AELEVELEZE Adjustable Extension -22Cast Iron Dome/Grate
-AERAdjustable Extension using Threaded Rod/Hdwe -3Deck Clamp Assembly & Drn Receiver
-PCPerforated Cover -3CDrain Receiver and Drain Receiver Clips
-1Deck Clamp Assembly -4Secondary Flashing Clamp (use with -AE only)
-1-20Deck Clamp Assembly, Galvanized -6Extra Wide Flange Drain Body, -X Only
-10Fixed Ext Collar, CI (spec. ht.)
-10-20Fixed Exn Collar, Galv. (spec. hgt.) -TThreaded Outlet
-172 Inch High Solid Clamping Collar -XInside Caulk Outlet
-2Drain Receiver -YHub Outlet w/Gasket, 2"-4"
-20Galvanized Cast Iron Parts -ZNo-Hub Spigot Outlet

21502-ORDG1 2
21503-ORDG1 3
21504-ORDG1 4
21505-ORDG1 5
21506-ORDG1 6
21508-ORDG1 8
21509-ORDG1 10
