Roof Drain: Green Roof Drain, Plaza/Planter, Perforated PVC Standpipe

Specification

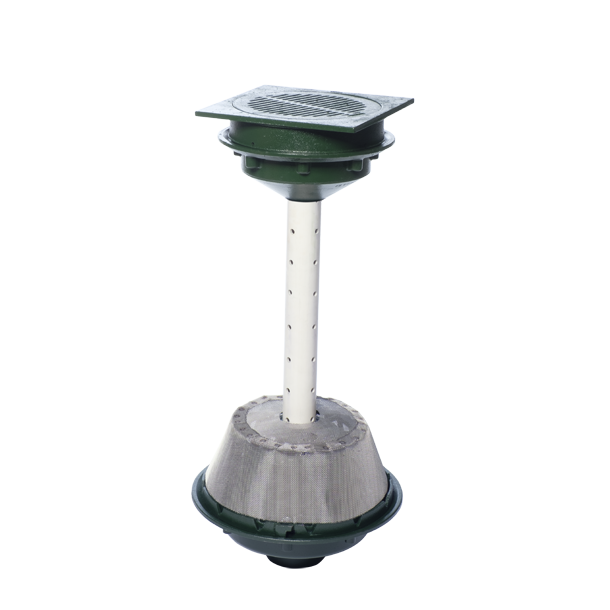

21500-Q601 series plaza/planter, coated cast iron promenade square top drain, perforated PVC standpipe, and coated cast iron dome with SS mesh screen

Options
-AELEVELEZE Adjustable Extension -3Deck Clamp Assembly & Drn Receiver
-AERAdjustable Extension using Threaded Rod/Hdwe -3CDrain Receiver and Drain Receiver Clips
-BRSBronze Standpipe -4Secondary Flashing Clamp (use with -AE only)
-PCPerforated Cover -6Extra Wide Flange Drain Body, -X Only
-1Deck Clamp Assembly
-1CPDrain Receiver Clips -TThreaded Outlet
-10Fixed Ext Collar, CI (spec. ht.) -XInside Caulk Outlet
-10-20Fixed Exn Collar, Galv. (spec. hgt.) -YHub Outlet w/Gasket, 2"-4"
-2Drain Receiver -ZNo-Hub Spigot Outlet
-20Galvanized Cast Iron Parts -66No-Hub Side Outlet

Type # PIPE SIZE  LBS
21502-Q601 2 36
21503-Q601 3 37
21504-Q601 4 38
21505-Q601 5 39
21506-Q601 6 40
21508-Q601 8 42
21509-Q601 10 43
