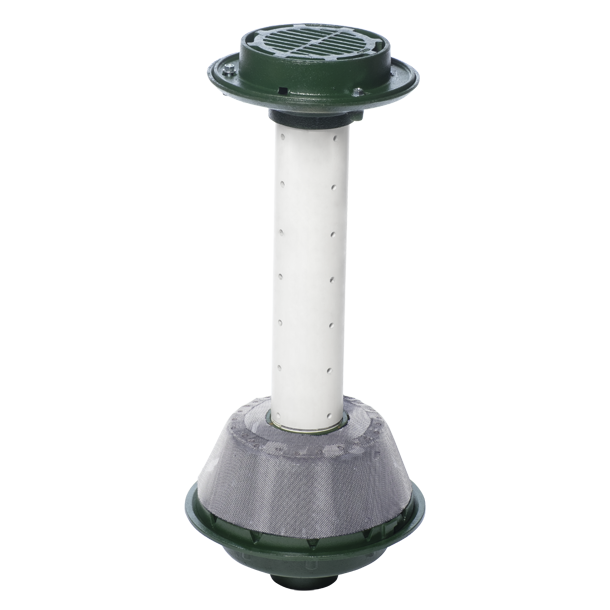

Roof Drain: Green Roof Drain, Planting Area, PVC Standpipe, Top Section is 32100

Specification
21500-Q602 planting area cast iron lower drain, WEJLOC clamp ring with SS mesh covered cast iron dome modified for threaded PVC standpipe. Top section is 32100 floor drain.

Options
-AE	LEVELEZE Adjustable Extension	-3C	Drain Receiver and Drain Receiver Clips
-AER	Adjustable Extension using Threaded Rod/Hdwe	-4	Secondary Flashing Clamp (use with -AE only)
-PC	Perforated Cover	-6	Extra Wide Flange Drain Body, -X Only
-1	Deck Clamp Assembly
-1CP	Drain Receiver Clips	-T	Threaded Outlet
-10	Fixed Ext Collar, CI (spec. ht.)	-X	Inside Caulk Outlet
-10-20	Fixed Exn Collar, Galv. (spec. hgt.)	-Y	Hub Outlet w/Gasket, 2"-4"
-2	Drain Receiver	-Z	No-Hub Spigot Outlet
-20	Galvanized Cast Iron Parts	-66	No-Hub Side Outlet
-3	Deck Clamp Assembly & Drn Receiver

Type #	PIPE SIZE	LBS
21502-Q602	2	36
21503-Q602	3	37
21504-Q602	4	38
21505-Q602	5	39
21506-Q602	6	40
21508-Q602	8	42
21509-Q602	10	43
