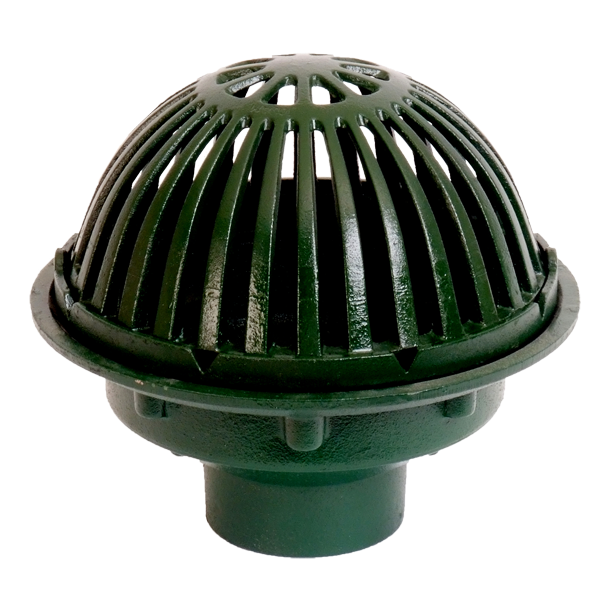

Roof Drain: Medium Sump, Clamp Ring & Cast Iron Beehive Dome

22010 Series coated cast iron roof Drain, medium beehive dome, non-puncturing clamp ring with integral gravel stop, medium sump with roof flange and bottom outlet

Used on mid-sized roofs of any construction where a medium sized drain is required. Flashing Clamp holds the membrane or flashing securely to the drain body. Medium sized beehive dome provides ample drainage for smaller roof decks and intercepts debris.

-AERAdjustable Extension using Threaded Rod/Hdwe -21Galvanized Cast Iron Dome Only
-AREAcid Resistant Epoxy Coated -23Rough Bronze Dome
-FGFlat Grate -26Aluminum Dome
-IRMAPerforated Stainless Steel Extension -3Deck Clamp Assembly & Drn Receiver
-VPVandal-Proof -3CDrain Receiver and Drain Receiver Clips
-1Deck Clamp Assembly -33S.S. Mesh Screen Covered Dome
-10Fixed Ext Collar, CI (spec. ht.)
-10-20Fixed Exn Collar, Galv. (spec. hgt.) -TThreaded Outlet
-172 Inch High Solid Clamping Collar -XInside Caulk Outlet
-19Clamp Collar w/SS Perf Gravel Guard -ZNo-Hub Spigot Outlet
-2Drain Receiver -66No-Hub Side Outlet
-20Galvanized Cast Iron Parts

22012 2 4-3/4 6-1/4 30
22013 3 4-3/4 6-1/4 30
22014 4 4-1/2 6-1/4 30
22015 5 4-3/8 6 30
22016 6 4 5-3/4 30
