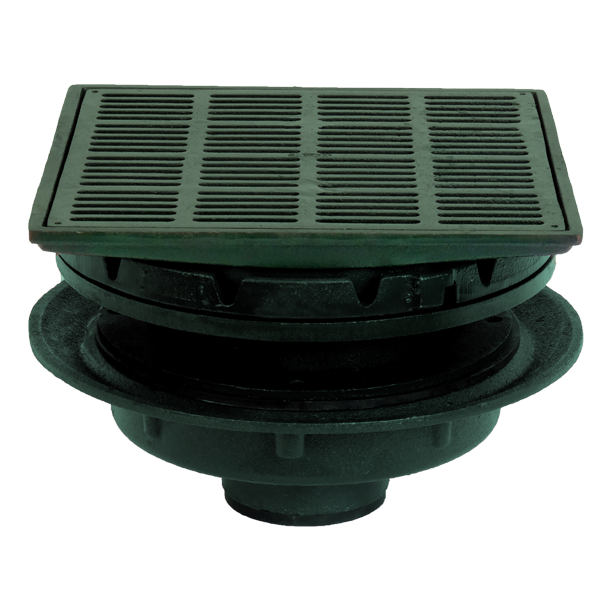

Roof Drain: Large Sump, Promenade Top with Adjustable Extension

23500-AE Series coated cast iron Roof Drain, square pedestrian grate set in square secured frame, WEJLOC non-puncturing flashing collar with weepholes for 2" roof fill, adjustable top with bolted support ring, large sump with wide roof flange and bottom outlet.

-AREAcid Resistant Epoxy Coated -36Ductile Iron Grate (C.I. Top Only)
-CRClamping Drain Receiver with Hardware -37-50H.D. Duct Undergrt Lam Top,S.F. Nik
-IRMAPerforated Stainless Steel Extension -37-51H.D. Duct Undergrt Lam Top,S.F. Brz
-PG110 Sq in free area grate (ductile iron only) -4Secondary Flashing Clamp (use with -AE only)
-VPVandal-Proof -50Satin Finish Nikaloy Top
-1Deck Clamp Assembly -51Satin Finish Bronze Top
-1CPDrain Receiver Clips -6Extra Wide Flange Drain Body, -X Only
-10Fixed Ext Collar, CI (spec. ht.)
-10-20Fixed Exn Collar, Galv. (spec. hgt.) -TThreaded Outlet
-18Extra Deep Sump -XInside Caulk Outlet
-2Drain Receiver -YHub Outlet w/Gasket, 2"-4"
-20Galvanized Cast Iron Parts -ZNo-Hub Spigot Outlet
-3Deck Clamp Assembly & Drn Receiver -66No-Hub Side Outlet
-3CDrain Receiver and Drain Receiver Clips
