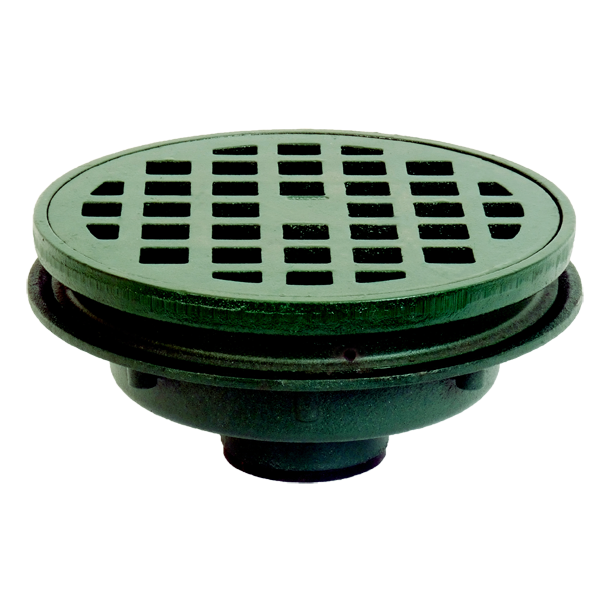

Roof Drain: Large Sump w/14" Dia. Extra Heavy Duty C.I. Parking Grate

23510 Series coated cast iron Roof Drain, round extra heavy-duty grate set in round secured frame, WEJLOC non-puncturing flashing collar with weepholes, for 2" roof fill, large sump with wide roof flange and bottom outlet.

Used on large roofs or decks designed for heavy traffic such as parking decks and loading docks. Large round extra heavy-duty grate provides ample free area for proper drainage. WejLoc compression flashing clamp holds the membrane or flashing securely to the drain body.

-CRClamping Drain Receiver with Hardware -3CDrain Receiver and Drain Receiver Clips
-VPVandal-Proof -36Ductile Iron Grate (C.I. Top Only)
-1Deck Clamp Assembly -50Satin Finish Nikaloy Top
-1CPDrain Receiver Clips -51Satin Finish Bronze Top
-10Fixed Ext Collar, CI (spec. ht.)
-10-20Fixed Exn Collar, Galv. (spec. hgt.) -TThreaded Outlet
-2Drain Receiver -XInside Caulk Outlet
-20Galvanized Cast Iron Parts -YHub Outlet w/Gasket, 2"-4"
-3Deck Clamp Assembly & Drn Receiver -ZNo-Hub Spigot Outlet

23512 2 72
23513 3 72
23514 4 73
23515 5 73
23516 6 74
23518 8 76
