Roof Drain: Composition Deck Flange & Super-Flo Grate

Specification

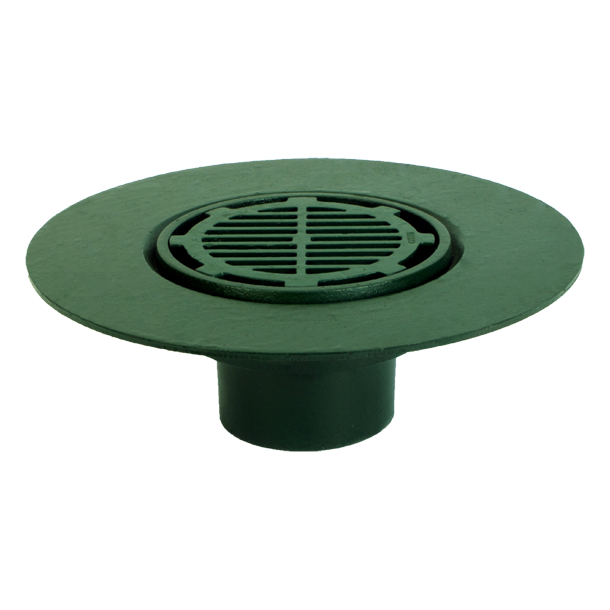

24020 Series coated cast iron SUPER-FLO Roof Drain, round medium-duty anti-tilting grate with perimeter drainage slots, set in round, non-puncturing membrane clamp ring and medium sump with 4" wide deck flange and bottom outlet, inside caulk connection.

Application
Used on promanade roof decks where waterproof traffic bearing elastomeric covering is to be applied. Wide deck flange provides proper area for bonding of composition roof deck covering and distributes the drains weight over a broad area for positive support. Mid-sized round medium duty Super-Flo grate assures rapid drainage and intercepts debris.

Options
-HPHeel Proof Grate -36Ductile Iron Grate (C.I. Top Only)
-VPVandal-Proof -38Less Grate
-1Deck Clamp Assembly -50Satin Finish Nikaloy Top
-20Galvanized Cast Iron Parts -51Satin Finish Bronze Top
-29Sediment Bucket, Cast Iron
-29-20Sediment Bucket, Galvanized -XInside Caulk Outlet
-31Chain Anchored Grate

Type # PIPE SIZE  LBS
24022 2 28
24023 3 28
24024 4 29
