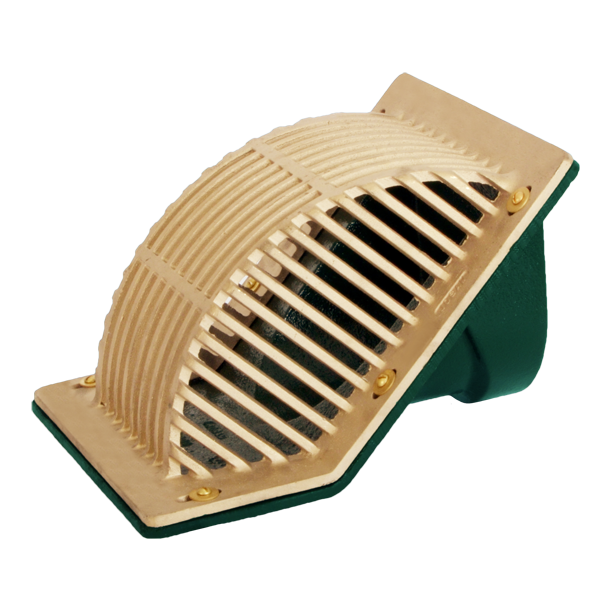

Parapet Drain: Large Rough Bronze Angle Dome, Flash Clamp & Side Outlet

24900 Series coated cast iron Roof Drain, parapet type, secured bronze dome integral with flashing clamp, flashing flange and side outlet threaded connection.

Used at the junction of the roof and the parapet where perimeter or emergency drainage of rainwater is required and a 135 cant is specified. Extra-large sloping grate provides ample drainage and is slotted to prevent entrance of debris. Flashing and membrane are positively secured to the drain body with a compression clamp, with threaded side outlet.

-VPVandal-Proof -61Downspout Elbow, Cast Iron
-20Galvanized Cast Iron Parts -61-20Downspout Elbow, Galvanized
-24Rough Nikaloy Top
-50Satin Finish Nikaloy Top -TThreaded Outlet
-51Satin Finish Bronze Top

24902 2 1-5/8 58
24903 3 2-3/16 57
24904 4 2-11/16 55
24904 5 3-1/4 53
24906 6 3-3/4 50
