Flo-Septor: Medium Sump, Clamp Ring & Solid Water Dam, Cast Iron

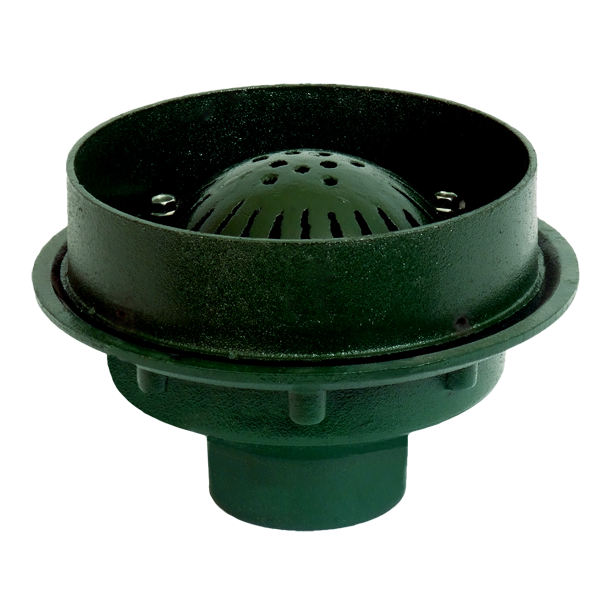

25520 Series coated cast iron FLO-SEPTOR Roof Drain, cast iron internal dome strainer, combined non-puncturing clamp ring and solid water dam, medium sump with roof flange and bottom outlet.

Used on roof areas to receive wastewater from air conditioning units, cooling towers and other mechanical equipment installed on the roof. The solid water dam prevents storm water from entering the waste line. The internal dome strainer provides ample drainage and prevents entry of debris into the medium sump.

-1Deck Clamp Assembly
-10Fixed Ext Collar, CI (spec. ht.) -TThreaded Outlet
-2Drain Receiver -XInside Caulk Outlet
-20Galvanized Cast Iron Parts -ZNo-Hub Spigot Outlet
-3Deck Clamp Assembly & Drn Receiver -66No-Hub Side Outlet

25522 2 4-3/4 6-1/4 30
25523 3 4-3/4 6-1/4 30
25524 4 4-1/2 6-1/2 30
25525 5 4-3/8 6 30
25526 6 4 5-3/4 30
