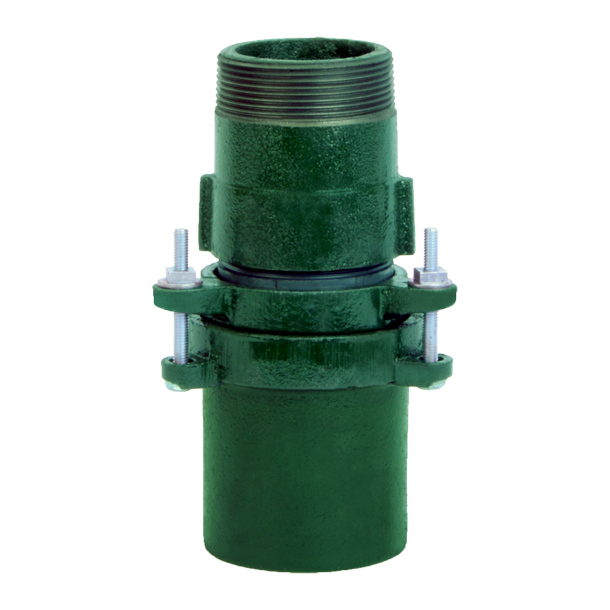

Expansion Joint: C.I. w/PVC Sleeve, Packing Gland & Pressure Ring

Specification
26200 Series coated cast iron Expansion Joint, schedule 80 PVC sleeve, packing gland with bolted pressure ring, male inlet and female outlet threaded connections.

Application
Used with all types of vertical drainage conductors, leaders, stacks, vent or soil lines, where contraction and expansion movements must be compensated for to prevent rupturing of lines and damage to the building construction.

Options
-BRBronze Sleeve -20Galvanized Cast Iron Parts

Type # PIPE SIZE  LBS
26202 2 9
26203 3 11
26204 4 12
26205 5 16
26206 6 20
26208 8 37
26209-Z 10 70
