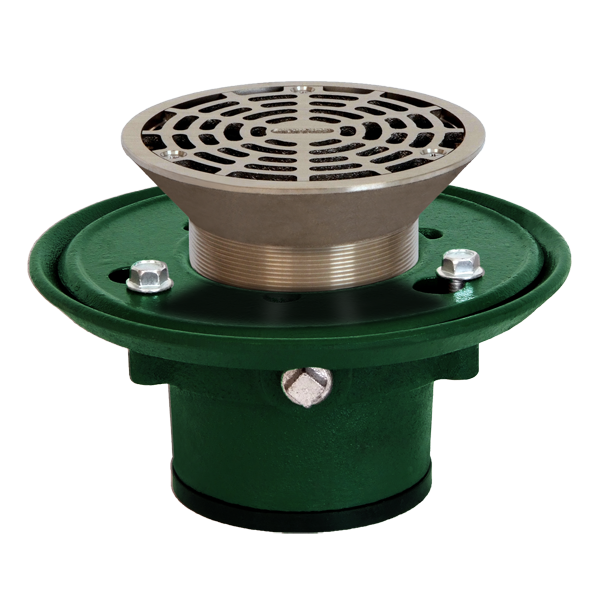

Floor Drain: C.I. Body w/Clamp Ring, Flange, Adjustable Nikaloy Strainer

Specification
30000-A Series coated cast iron Floor Drain, two-piece body with double drainage flange, WEJLOC invertible non-puncturing flashing collar, weepholes, bottom outlet and adjustable satin Nikaloy round SUPER-FLO strainer.

Application
For use in finished areas with pedestrian traffic such as toilet and shower rooms. Wide flange body anchors drain in concrete and works in conjunction with the clamp collar to redirect waste through the collars weep holes if seepage occurs around the strainer. The WEJLOC clamp provides a non-punturing positive bond of the waterprrofing membrane to the drain body for applications where floors with standing water are to be sealed off from areas below. The invertible collar provides additional adjustment to match thickness of various finished floor materials.

Options
-AREAcid-Resisting Epoxy -80Perforated Stainless Steel Basket
-CPChrome Plated -91Rough Bronze Body
-DBCDebris Cover -92Galvanized Cast Iron Parts
-HDHeavy-Duty Nikaloy Grate
-JBackwater Valve -PDPrison Drain
-SSStainless Steel -TThreaded Outlet
-TSITrap Seal Insert -XInside Caulk Outlet
-VPSecured Grate, Vandal-Proof Screws -YHub Outlet w/Gasket, 2"-4"
-2Satin Finish Bronze Top -ZNo-Hub Spigot Outlet
-493/4 Inch Primer Tap TSOThreaded Side Outlet
-501/2 Inch Primer Tap

Type # PIPE SIZE STRAINER TYPE TOP DIA FREE AREA WT LBS*
30002 2 5A 5" 7.8 14
30003 3 6A 6" 11.04 15
30004 4 7A 7" 13.28 16
30006 6 8A 8" 16.28 17
*STRAINER& BODY
