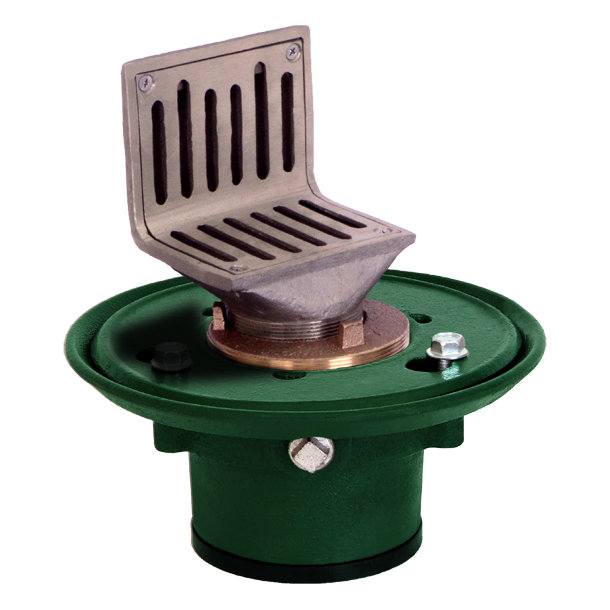

Floor Drain: C.I. Body w/Nikaloy Angle Strainer

Specification
30000-P Series coated cast iron Floor Drain, two-piece body with double drainage flange, WEJLOC invertible non-puncturing flashing collar, weepholes, bottom outlet and adjustable satin Nikaloy angle strainer set in eccentric bushing.

Application
For use in shower rooms or similar areas where the drain can be set at the junction of the floor and wall. Vertical grate openings prevent drain stoppage should the horizontal floor area become blocked.

Options
-TSITrap Seal Insert -92Galvanized Cast Iron Parts
-VPSecured Grate, Vandal-Proof Screws
-2Satin Finish Bronze Top -TThreaded Outlet
-493/4 Inch Primer Tap -XInside Caulk Outlet
-501/2 Inch Primer Tap -YHub Outlet w/Gasket, 2"-4"
-80Perforated Stainless Steel Basket -ZNo-Hub Spigot Outlet
-91Rough Bronze Body

Type # PIPE SIZE TYPE NO.  BxB1  X  Y  Z
30002 2 4P 3-1/4x4-1/4 7/8 1-3/4 1-3/4
30003 3 6P 6-1/8x6-1/4 1-5/8 3-7/8 1-1/8
30004 4
