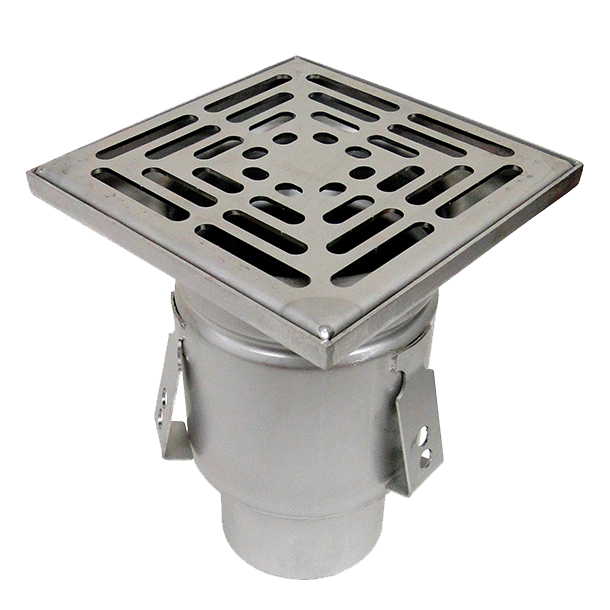

Stainless Steel (304) Floor Drain, 16" X 16" Square Top, 14" Deep, No-Hub Outlet

Specification
JOSAM 41870 Series Stainless Steel (304) Floor Drain, 16" X 16" Square Top, 14" Deep, No-Hub Outlet

Options
-CFFlange w/Membrane Clamp -SGPerimeter Slot Plate Grate
-DBDome Bottom Strainer -VPSecured Grate
-FBFilter Basket -3Q3/4 Reinforced Perf. Grate
-HG1/2 Reinforced Perf. Grate -316316 Stainless Steel
-LGLadder Grate -501/2" Primer Tap
-MGAnti-Slip Mesh Grate
-NGNo Grate -NHNo-Hub Outlet
-SBSediment Bucket -TThreaded Outlet

Type # PIPE SIZE NOM.  D  H  H1  W
41874 4" 13.7" (348MM) 13.9" (354MM) 3.5" (90MM) 15.6" (397MM)
41876 6" 13.7" (348MM) 13.9" (354MM) 3.5" (90MM) 15.6" (397MM)
41878 8" 13.7" (348MM) 13.9" (354MM) 3.5" (90MM) 15.6" (397MM)
