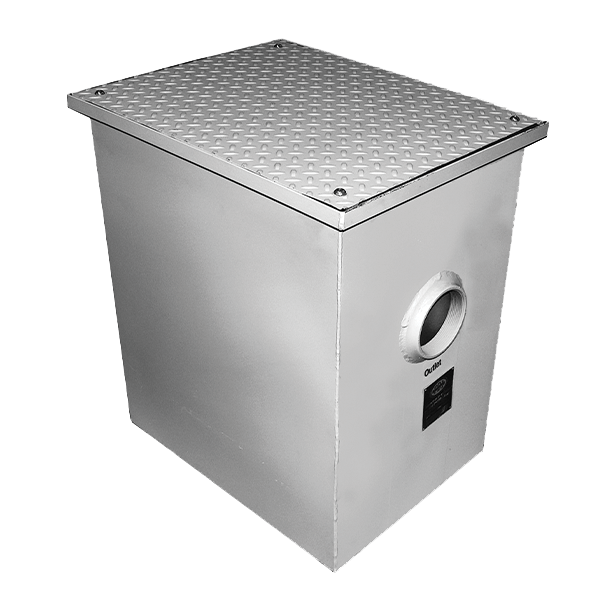

Grease Interceptor; Manual Cleaning Type with Extension

Specification
JOSAM 60100H-EXT Series epoxy coated fabricated steel Grease Interceptor, deep roughing, integral extension, no-hub connections, internal air relief, internal trap, removable diffuser baffle, gasketed non-skid cover, flow control fitting and PDI Seal ofApproval. Conforms to Plumbing and Drainage Institute Standard PDI-G101.

Options
-ACAluminum Cover -SSStainless Steel Interceptor
-GRDGrease Removal Device -40Cover Recess for Floor Finish
-HDHeavy-Duty Cover -61Flange and Clamp Device

Type # FLOW RATE GPM GREASE CAP LBS
60102H-EXT 7 14
60103H-EXT 10 20
60104H-EXT 15 30
60105H-EXT 20 40
60106H-EXT 25 50
60107H-EXT 35 70
60108H-EXT 50 100
60109H-EXT 75 150
60110H-EXT 100 200
